EVAP Canister Replacement

  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  2. Remove the fuel tank guard (A).

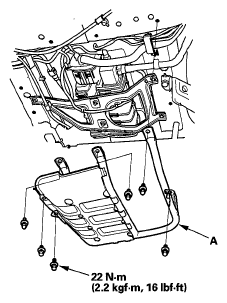

    Fig 1: Fuel Tank Guard With Torque Specifications
    G05964805Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).

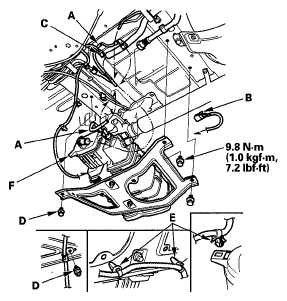

    Fig 2: Hoses, FTP Sensor 3P Connector, EVAP Canister Vent Shut Valve 2P Connector And Bolts With Torque Specifications
    G05964806Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the bolts (D) and the clips (E).
  5. Remove the EVAP canister assembly (F).
  6. Remove the EVAP canister bracket (A).
    NOTE: The canister filter remains on the bracket.
    Fig 3: EVAP Canister Bracket With Torque Specifications
    G05964807Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the parts in the reverse order of removal.
