HVAC Control Unit Removal/Installation

  1. Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws, and the HVAC control unit (A). If necessary, replace the bulbs (B).

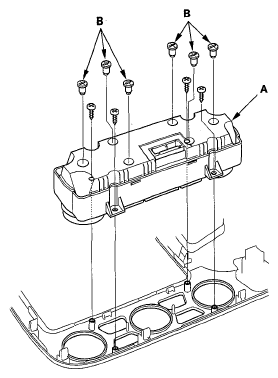

    Fig 1: Identifying HVAC Control Unit And Bulbs
    G05968442Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
  4. Run the self-diagnosis function to confirm that there are no problems in the system (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS ).
