Exploded View

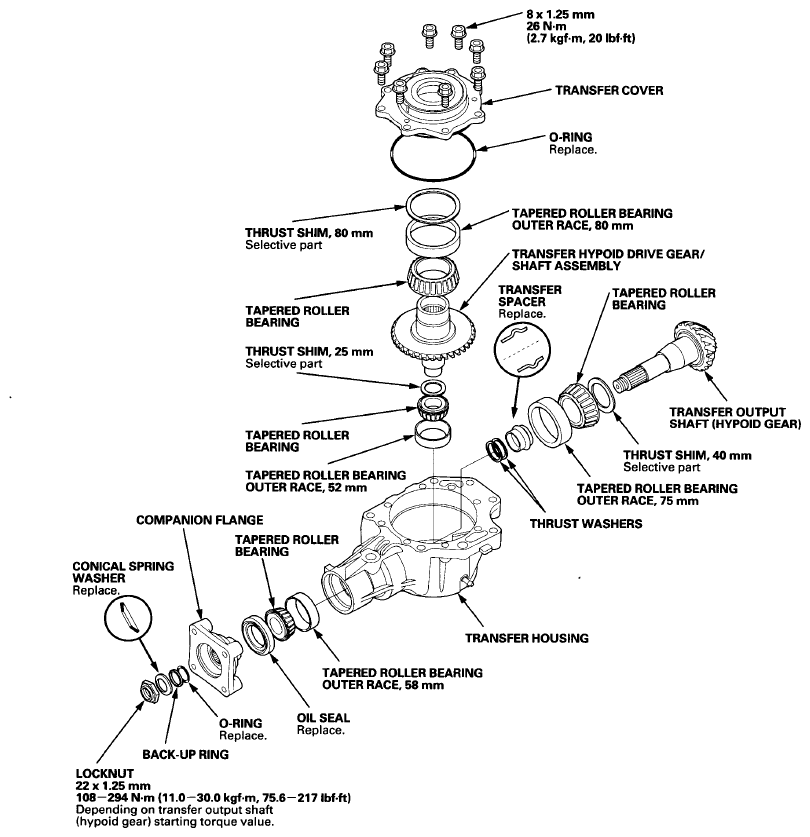

Fig 1: Exploded View Of Transfer Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Flange Holder 07XAB-0010101

1. Remove the transfer cover (A) from the transfer housing (B).

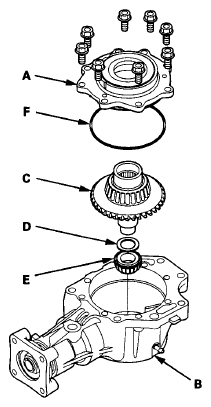

   Fig 2: Identifying Transfer Cover And Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the transfer hypoid drive gear/shaft assembly (C), the 25 mm thrust shim (D), and the tapered roller bearing (E).
3. Remove the O-ring (F) from the transfer cover.
4. Drain the transfer fluid (hypoid gear oil) from the transfer housing.
5. Cut the lock tab on the locknut using a chisel.
   Fig 3: Cutting Lock Tab On Locknut Using Chisel

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damage to the transfer housing, always use soft jaws or equivalent materials between the transfer housing and a vise.

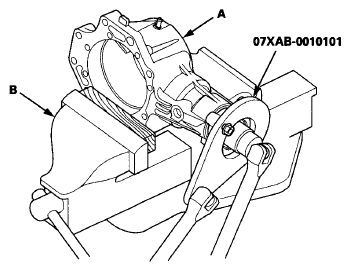

   Fig 4: Securing Transfer Housing In Bench Vise Using Soft Jaws

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Install the flange holder on the companion flange, then loosen the locknut.
8. Remove the flange holder.
9. Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (hypoid gear) (F).
   Fig 5: Identifying Locknut, Conical Spring Washer, Back-Up Ring And O-Ring

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Remove the transfer output shaft (hypoid gear) (A) from the transfer housing (B), then remove the thrust washers (C) and the transfer spacer (D) from the transfer output shaft (hypoid gear).

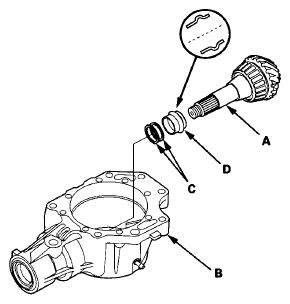

    Fig 6: Identifying Transfer Output Shaft (Hypoid Gear) On Transfer Housing

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).

Fig 7: Identifying Oil Seal And Tapered Roller Bearing On Transfer Housing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
