Cabin Temperature Sensor / Switch: Service and Repair

In-Car Temperature Sensor Replacement

1. Remove the driver's dashboard lower cover Driver's Dashboard Lower Cover Removal/Installation.

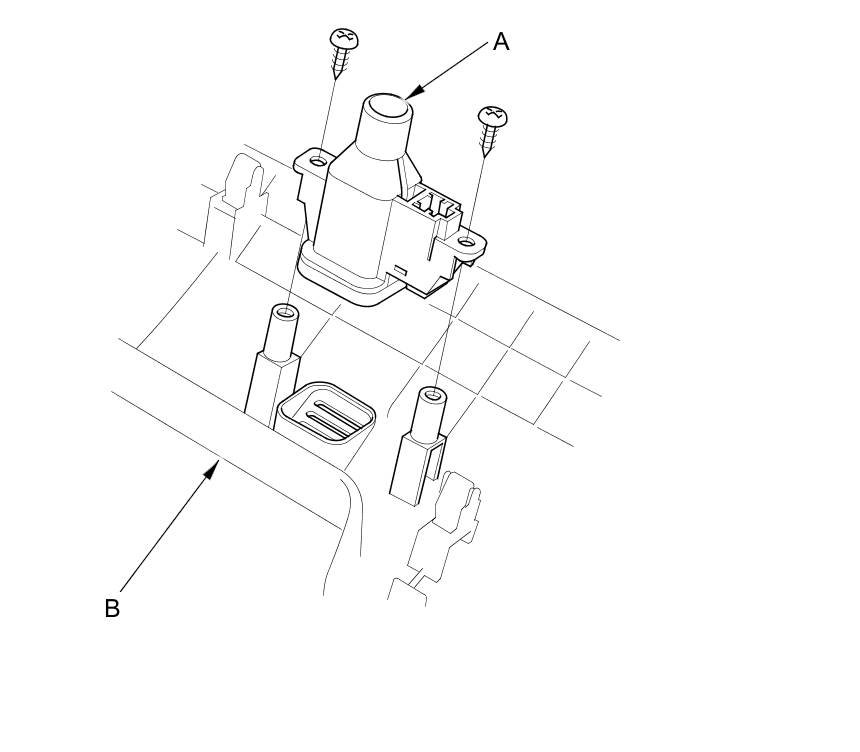

2. Remove the self-tapping screws and the in-car temperature sensor (A) from the driver's dashboard lower cover (B).





3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
