Map Light: Service and Repair

Front Individual Map Light Replacement

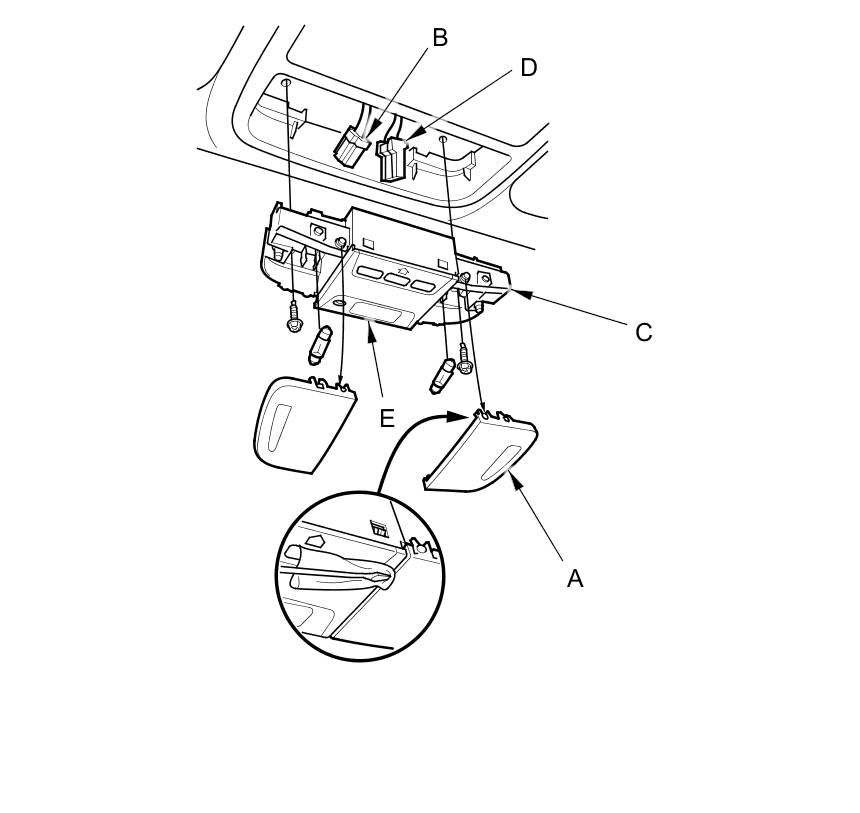

With HomeLink Remote Control System

1. Carefully pry off the lens (A) with a small screwdriver.









2. Remove the two mounting screws.

3. Disconnect the 3P connector (B) from the housing (C).

4. Disconnect the 10P connector (D) from the ambient light (E).

5. Install the light in the reverse order of removal.

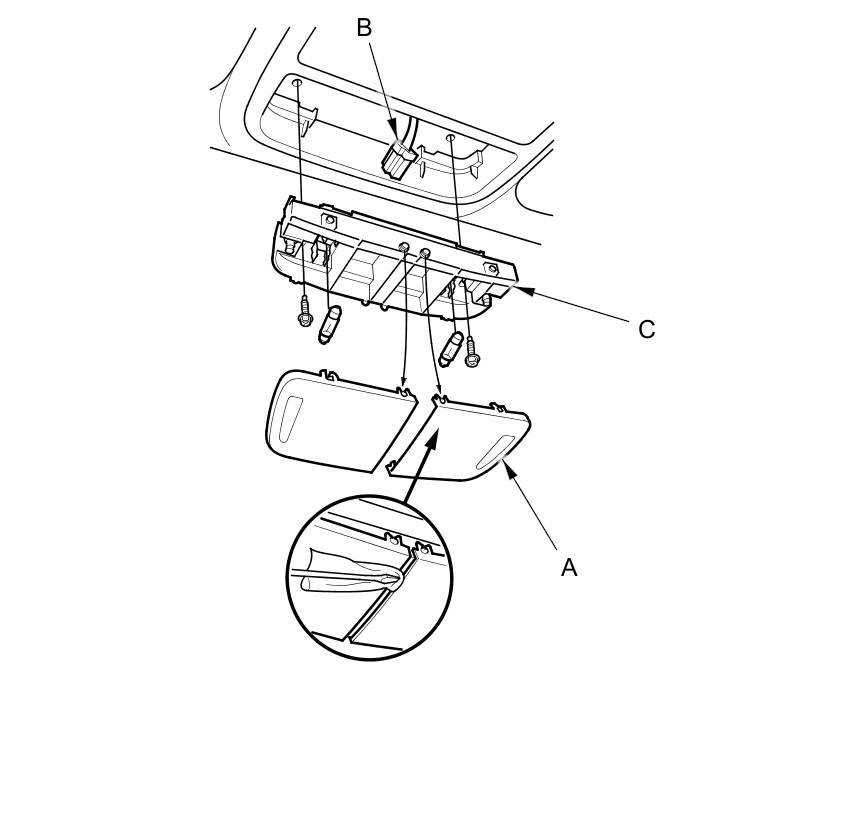

Without HomeLink Remote Control System

1. Carefully pry off the lens (A) with a small screwdriver.









2. Remove the two mounting screws.

3. Disconnect the 3P connector (B) from the housing (C).

4. Install the light in the reverse order of removal.
