Pinout Values and Diagnostic Parameters

Fuel and Emissions System Description - Electronic Control System

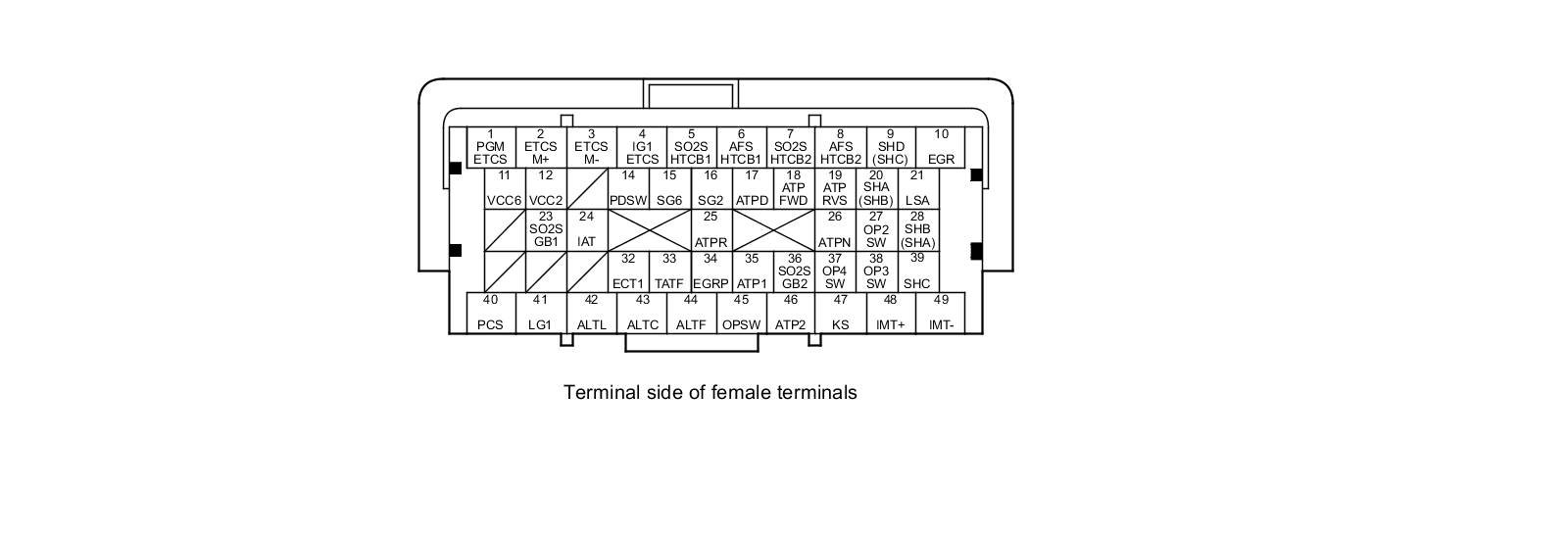

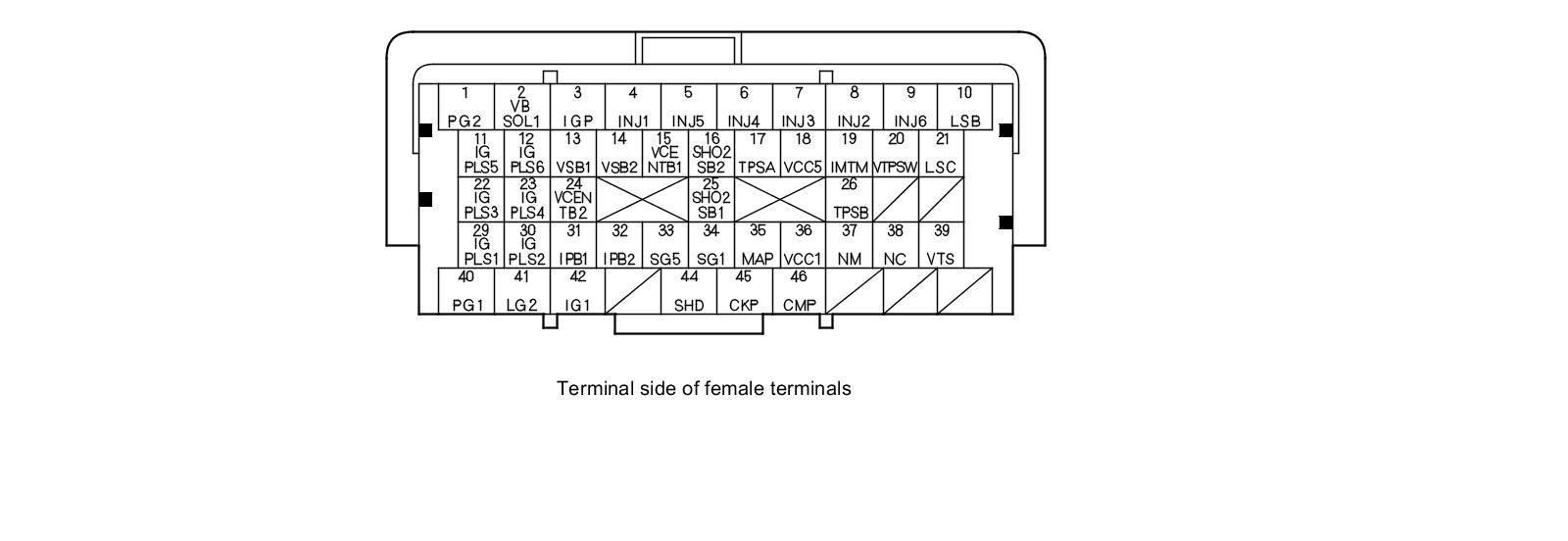

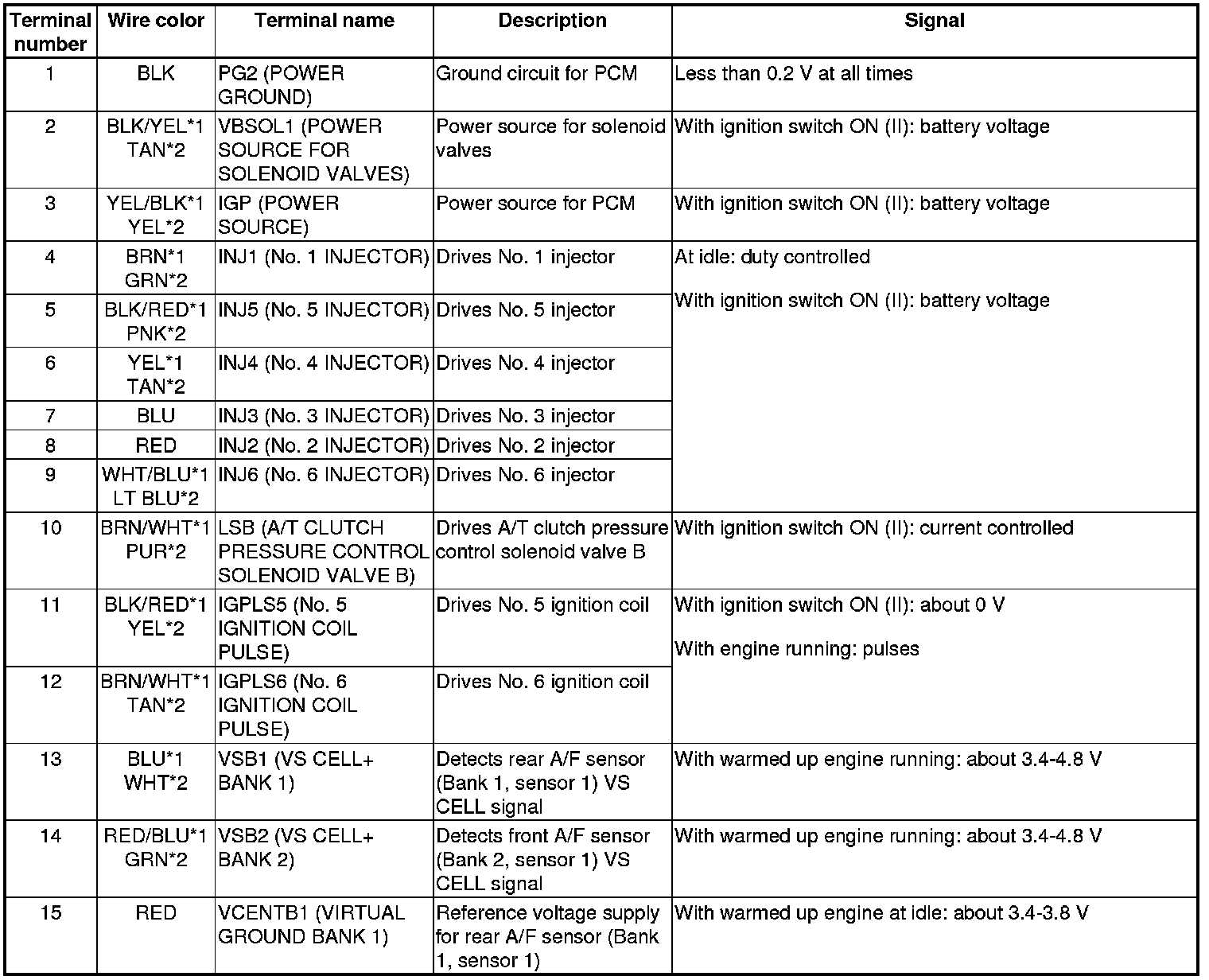

PCM Inputs and Outputs at PCM Connector A (square) (49P)









*1: '09-11 models
*2: 12 model

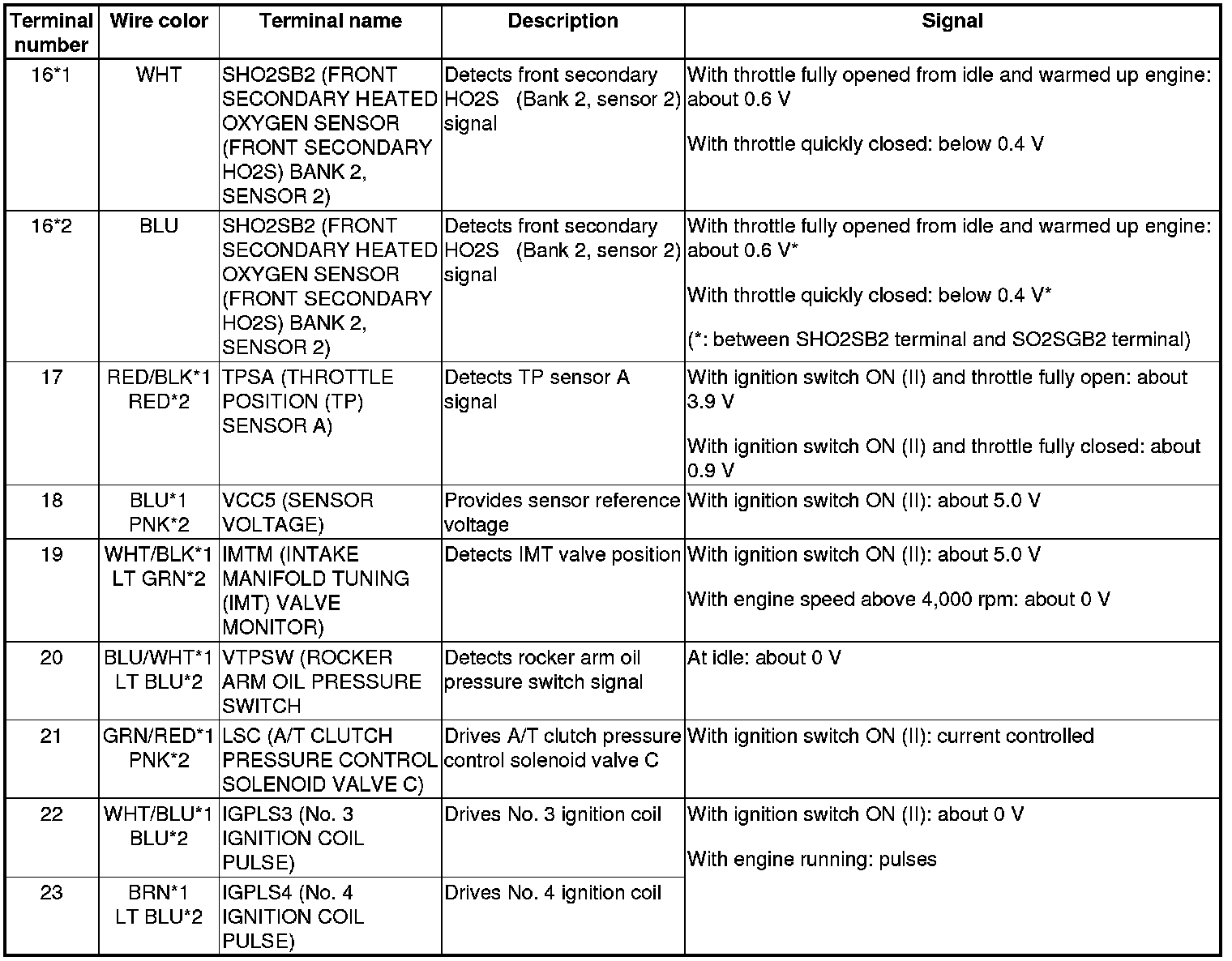

PCM Inputs and Outputs at PCM Connector A (square) (49P)

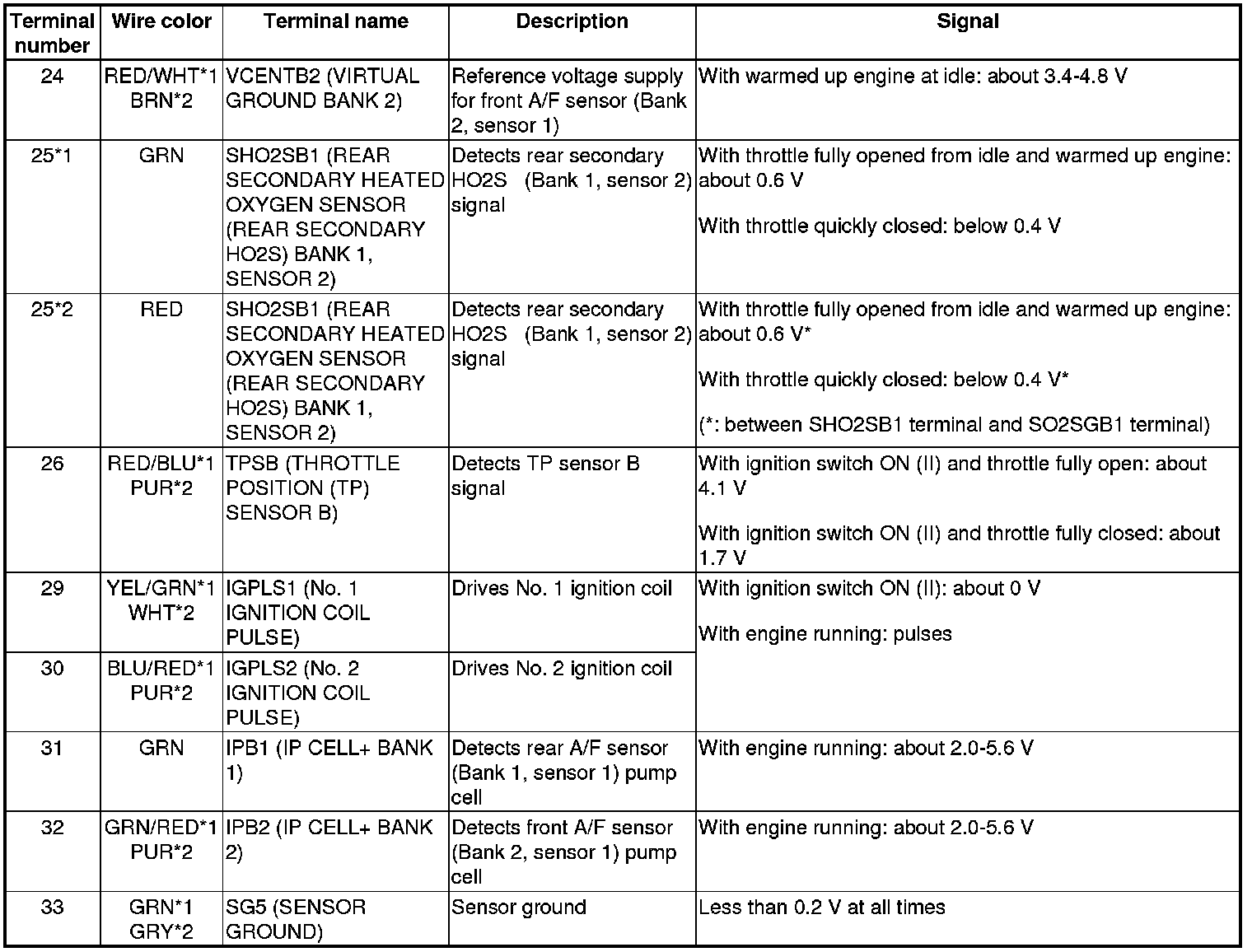

PCM Inputs and Outputs at PCM Connector A (square) (49P)

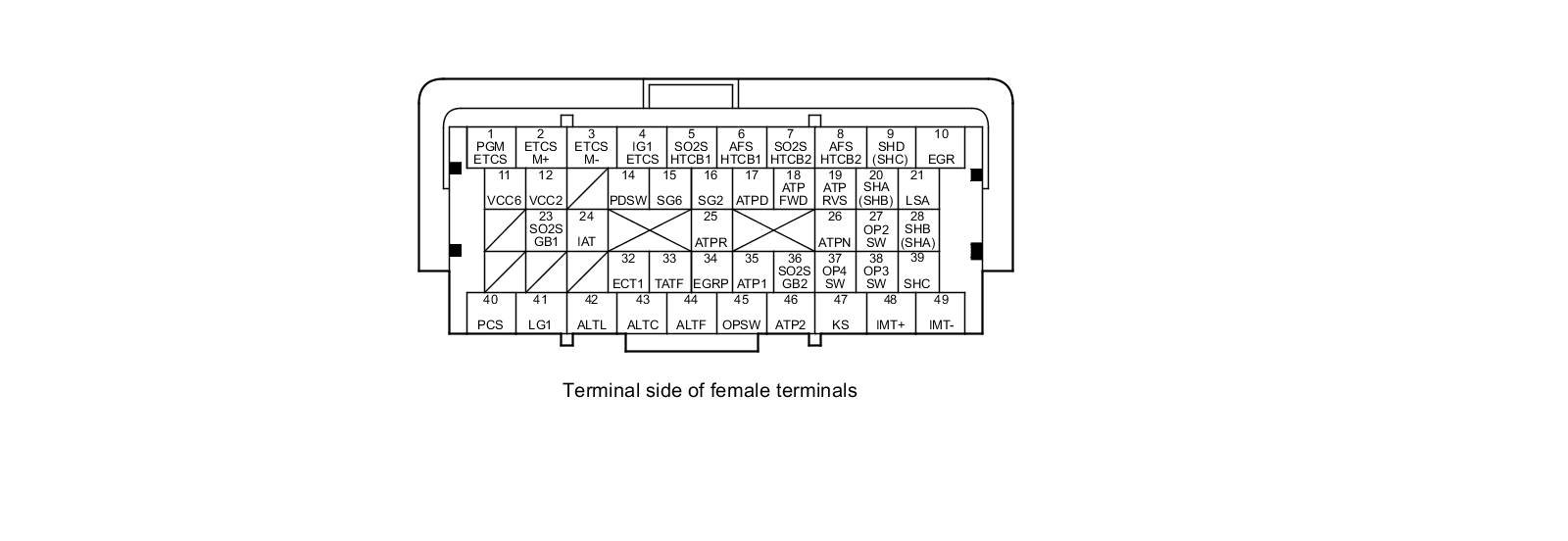

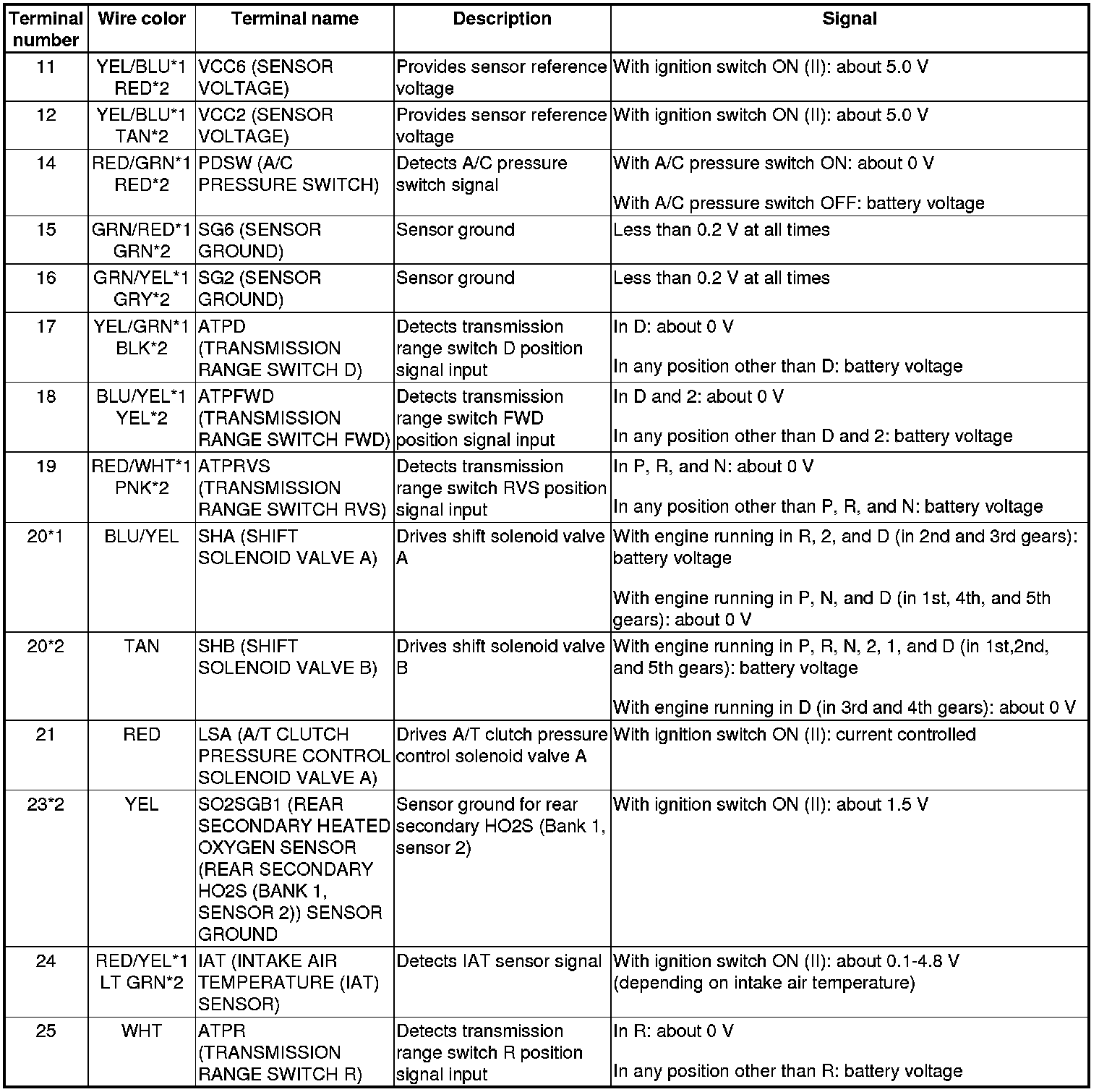

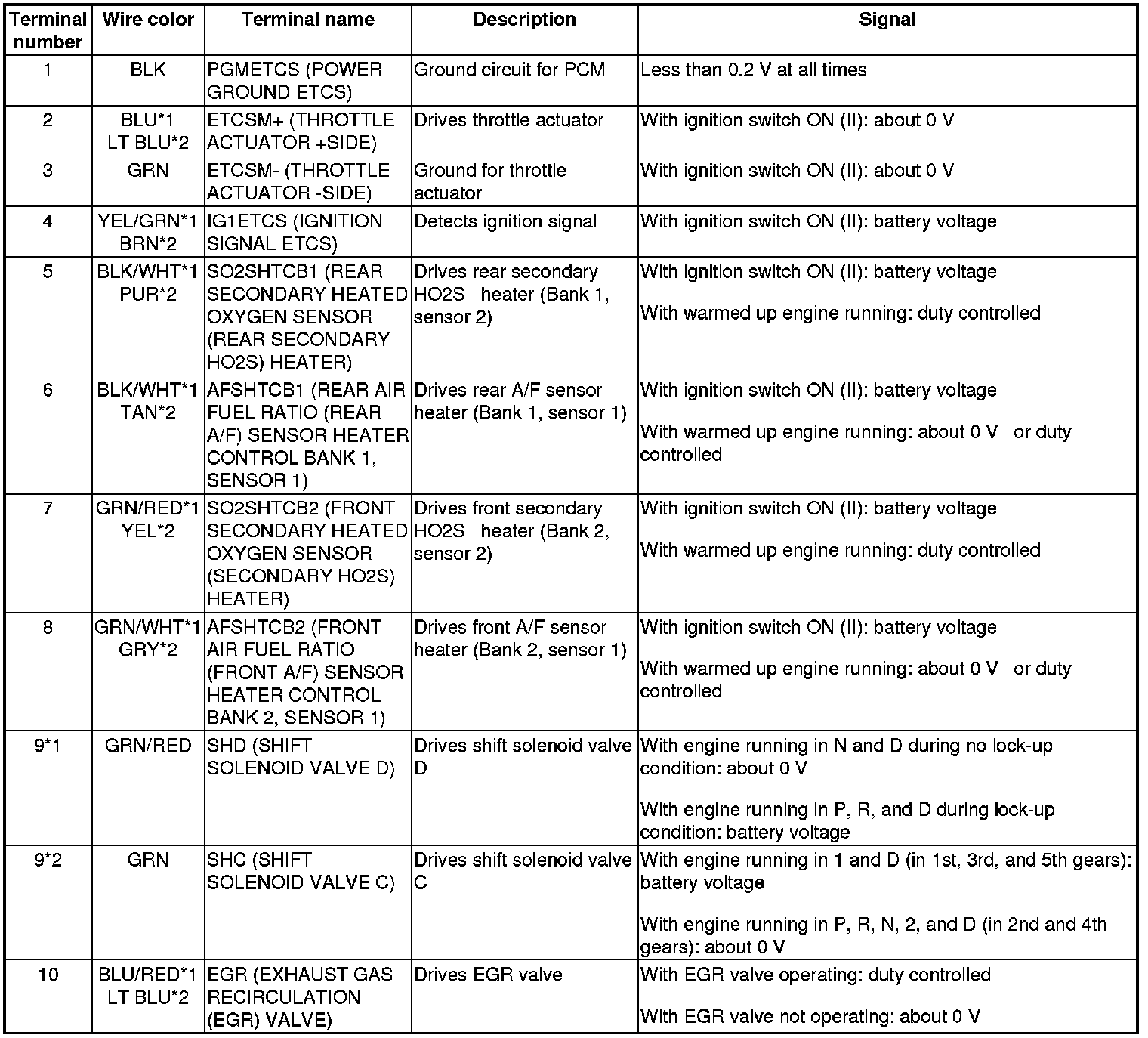

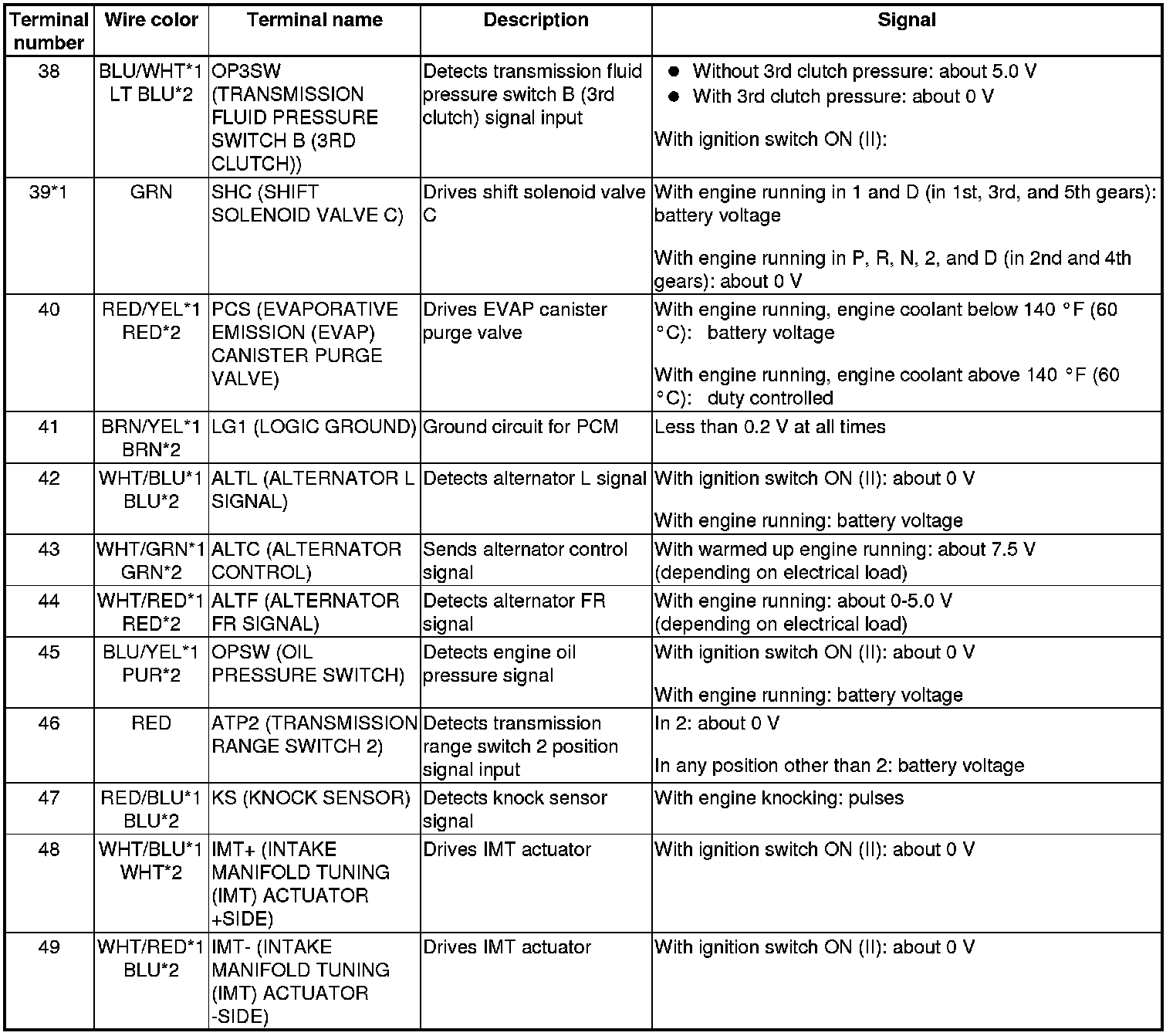

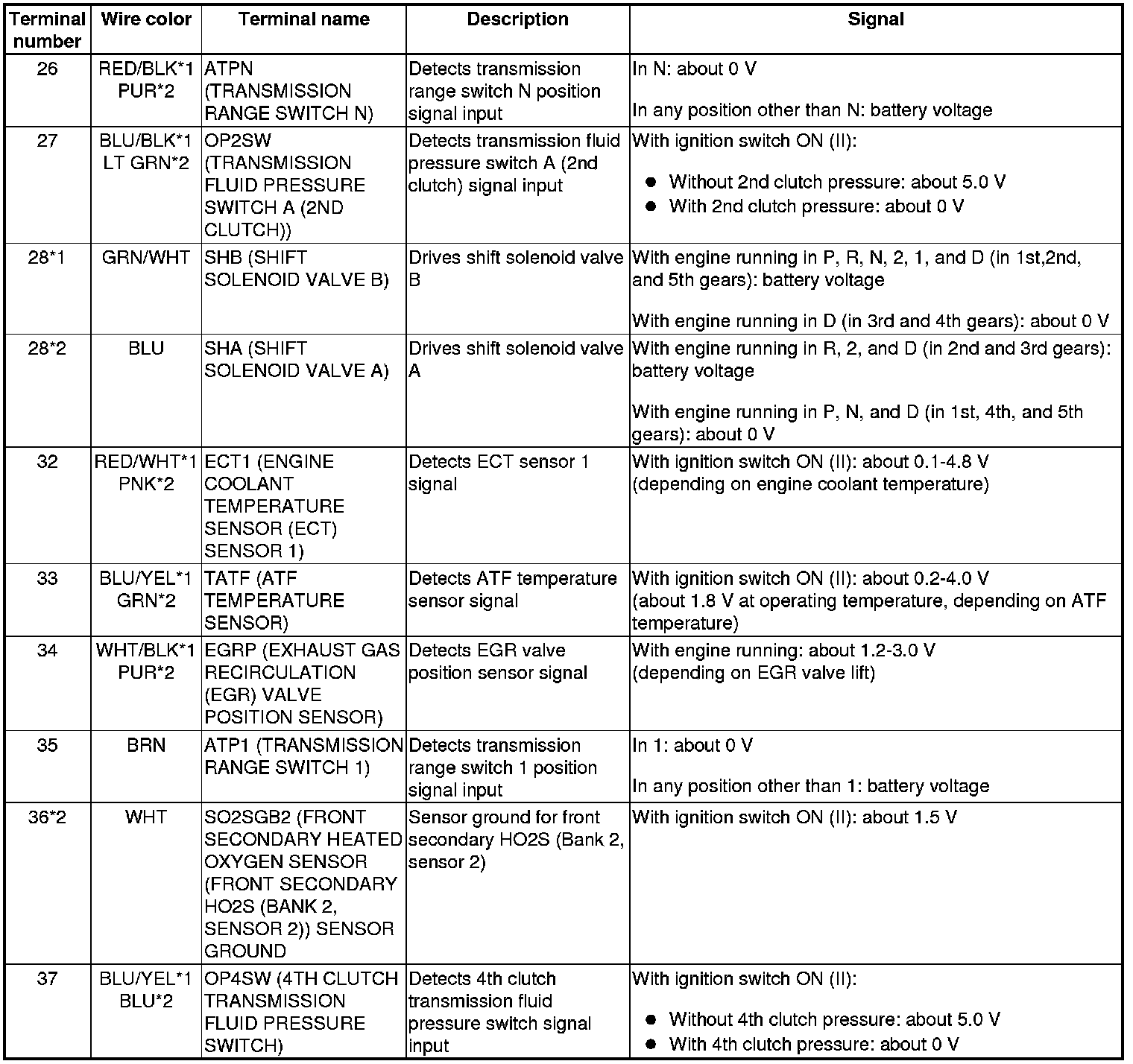

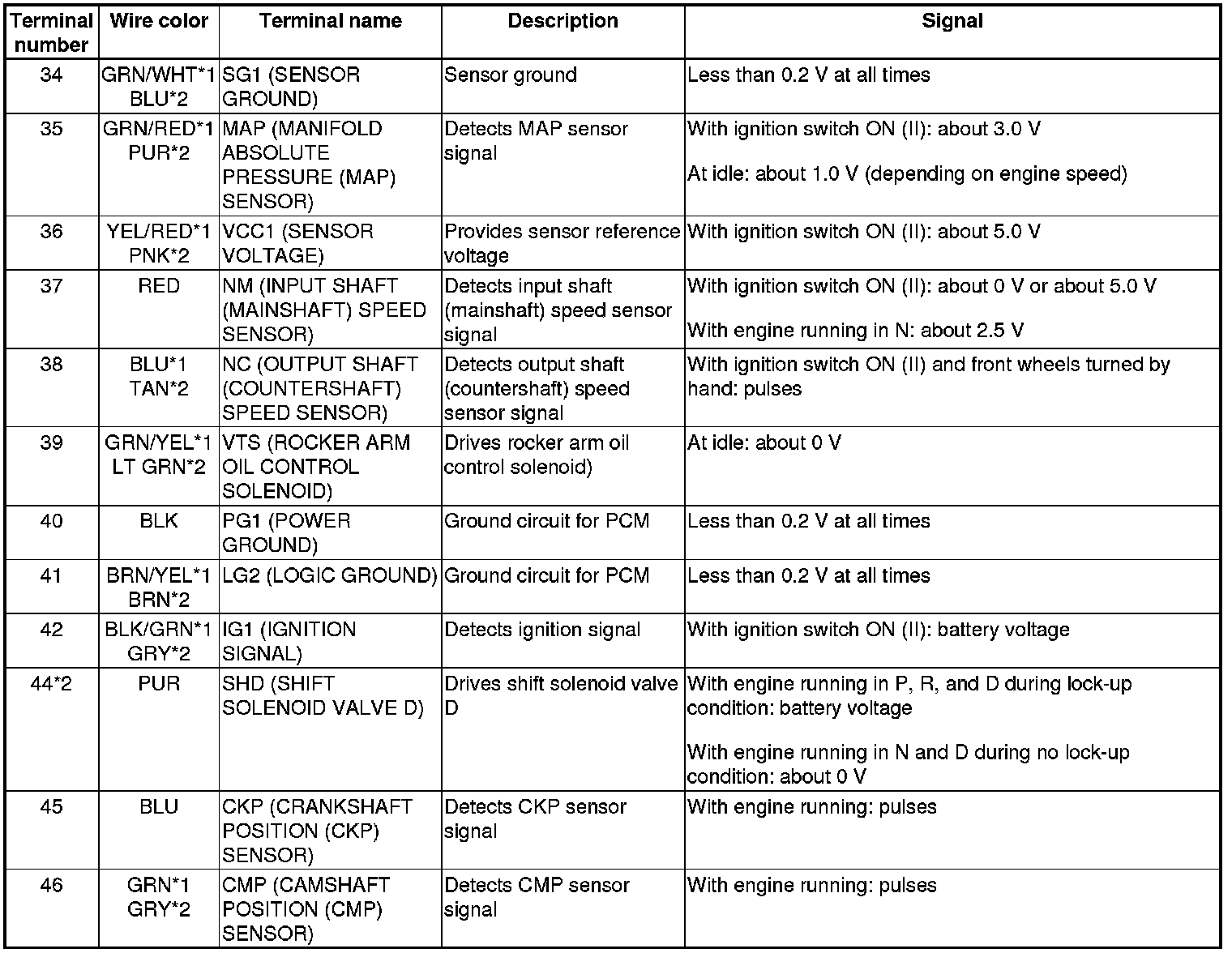

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)









*1: '09-11 models
*2: '12 model

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)









*1: '09-11 models
*2: '12 model

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)









*1: '09-11 models
*2: '12 model

PCM Inputs and Outputs at PCM Connector B (triangle) (49P)









*1: '09-11 models
*2: '12 model

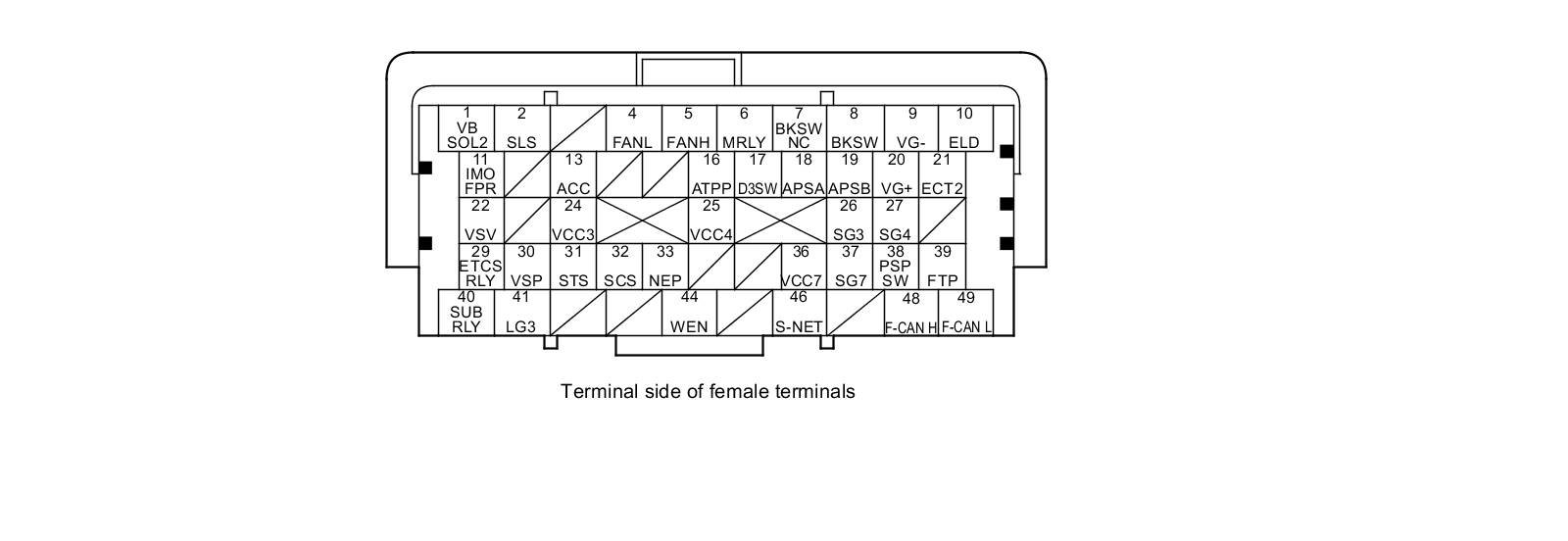

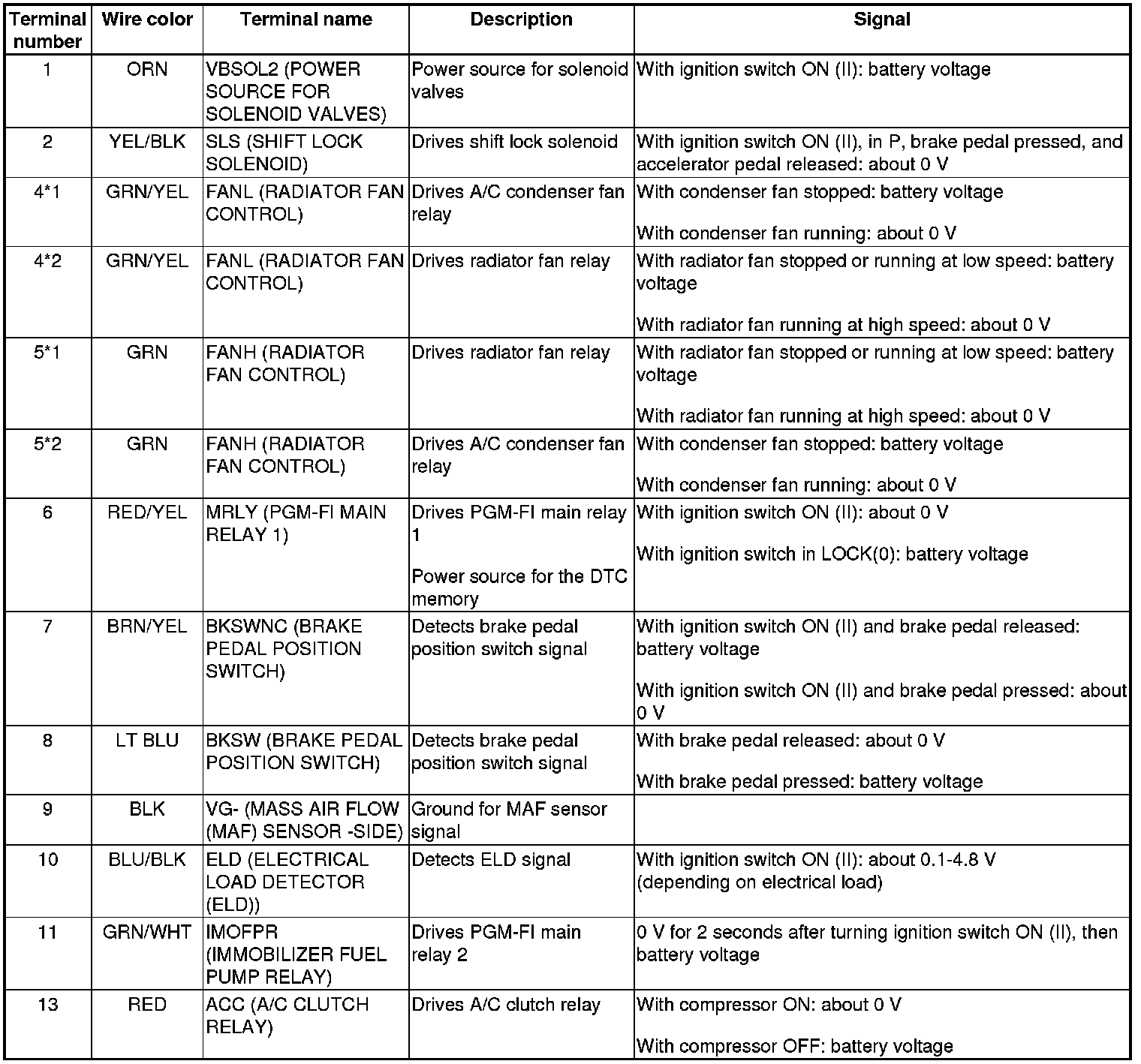

PCM Inputs and Outputs at PCM Connector C (circle) (49P)









*1: '09-11 models
*2: '12 model

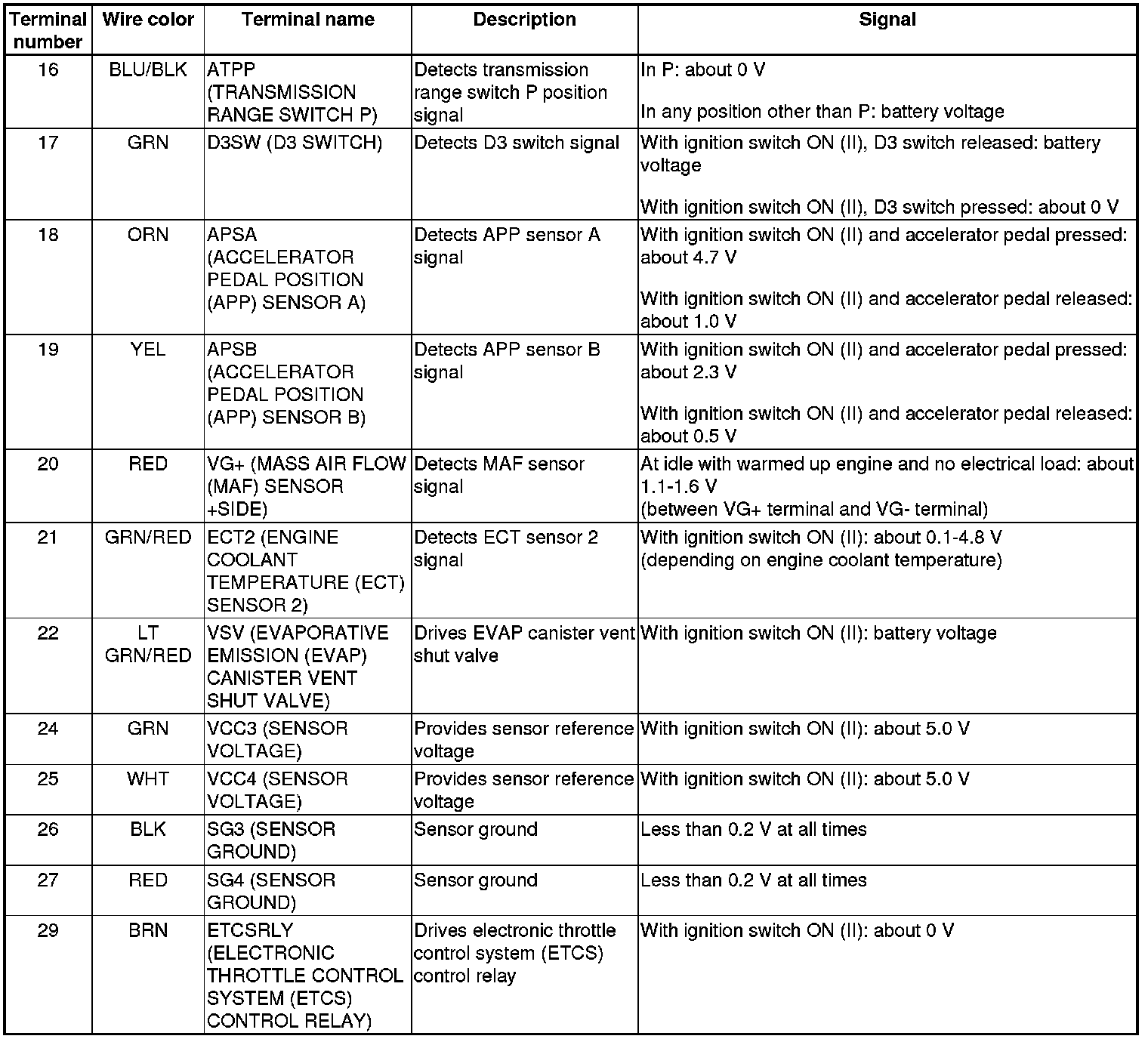

PCM Inputs and Outputs at PCM Connector C (circle) (49P)









*1: '09-11 models
*2: '12 model

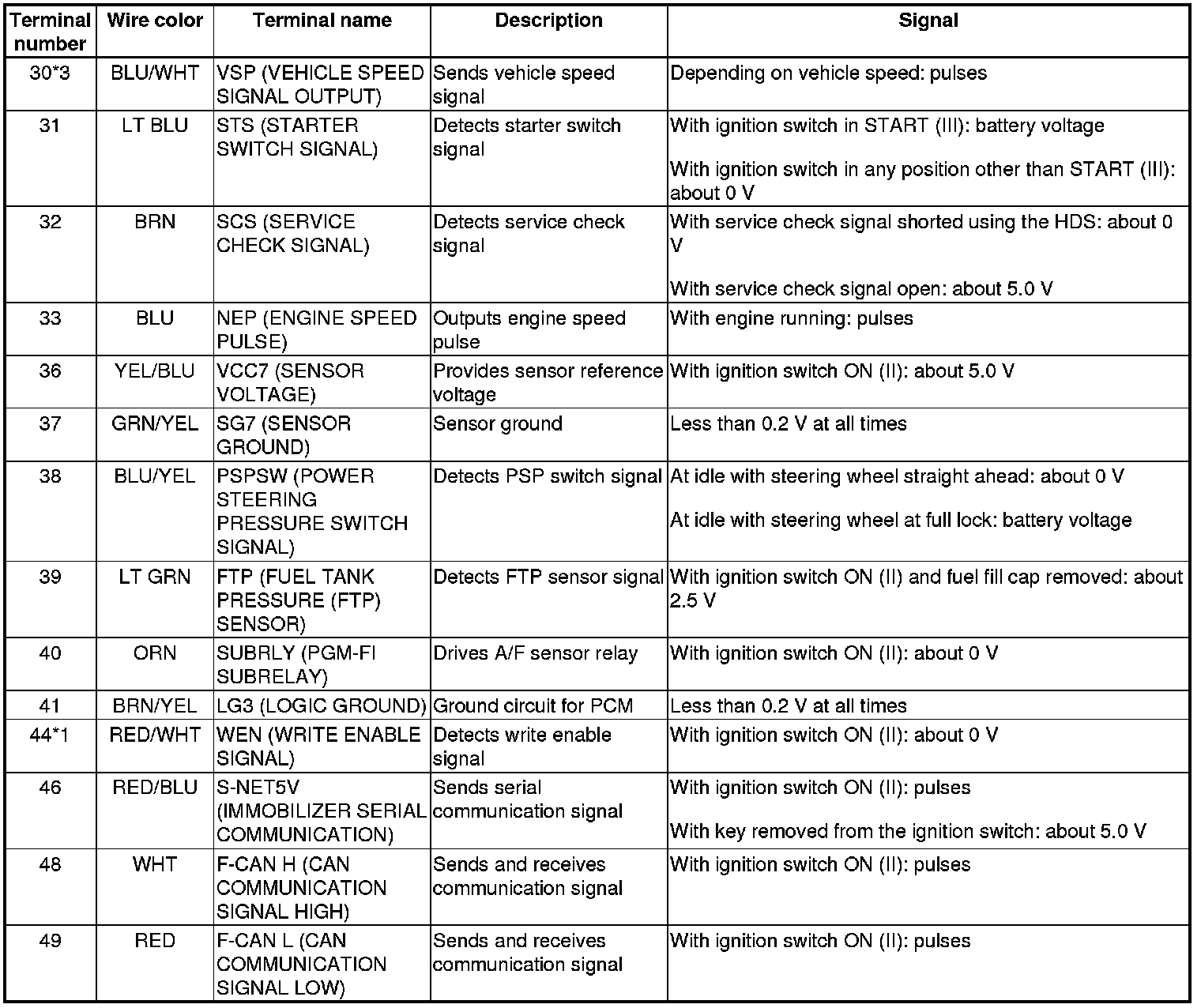

PCM Inputs and Outputs at PCM Connector C (circle) (49P)









*1: '09-11 models
*2: '12 model

PCM Inputs and Outputs at PCM Connector C (circle) (49P)









*1: '09-11 models
*2: '12 model
