Instrument Panel Control Module: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, do the Rewriting the ODO Data and Transferring the Maintenance Minder Data on a New Gauge Control Module procedure Programming and Relearning.

1. Remove the instrument panel Instrument Panel Removal/Installation.

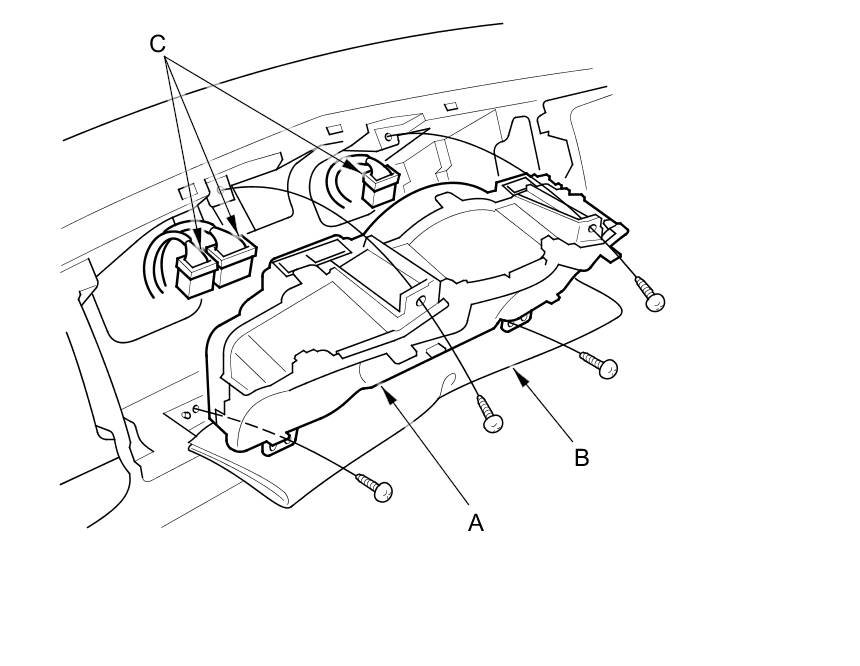

2. Remove the screws from the gauge control module (A), and spread a protective cloth (B) on the upper column cover.





3. Disconnect the connectors (C), and remove the gauge control module.

4. Install the gauge in the reverse order of removal.

5. Rewriting the ODO data and transferring the maintenance minder data to a new gauge control module Programming and Relearning.

NOTE: Check any official Honda service website for more information on how to write odometer information to a gauge control module that will not communicate with the HDS.
