Connecting Rod Nut/Bolt Torque




Tighten the connecting rod bolt to 20 Nm (2.0 kg-m, 15 lb-ft).

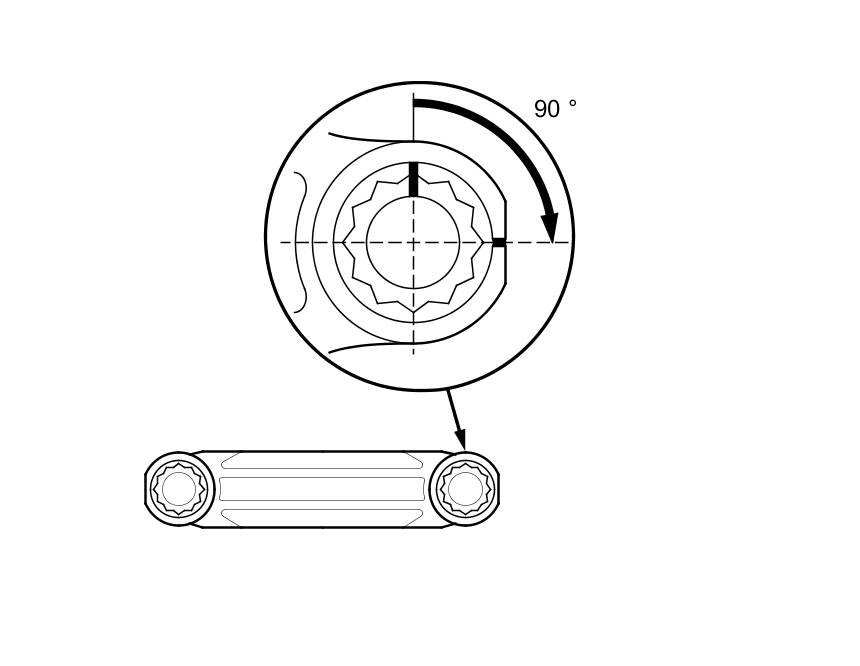

Tighten the connecting rod bolt an additional 90 °.

NOTE: Remove the connecting rod bolt if you tightened it beyond the specified angle, and go back to step 16 of the procedure. Do not loosen it back to the specified angle. Repeat steps 10 to 21 for the remaining cylinders.
