Flash Memory

This diagnosis displays directly from the System Links screen by selecting the Flash Memory icon.

This diagnosis checks the SD module status.

• Insert: Displays the result of the insert status about the SD module (OK; Inserted, NG; Not Inserted).
• Access: Displays the result of the access to the SD module (OK/NG). If NG, replace the SD module (see SD MODULE REMOVAL/INSTALLATION  ), and recheck.

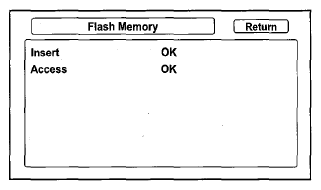

  Fig 1: Screen Display - Flash Memory

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
