All Clear

The all clear function deletes the all the customer information and the previous destinations from the audio-navigation unit SD module.

If you select All Clear, a confirmation screen appears.

When YES is selected, a second confirmation screen appears.

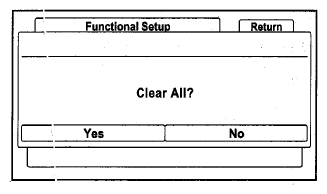

Fig 1: Screen Display - Clear All Functions

Courtesy of AMERICAN HONDA MOTOR CO., INC.

When YES is selected, the system restarts after performing the All Clear process. After the restart, a normal start-up process occurs and the audio-navigation unit then needs GPS initialization.

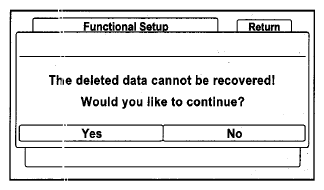

Fig 2: Screen Display - Function Setup (Continue Screen)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

ERROR MESSAGE TABLE

Screen Error Message	Solution
The navigation system is unable to start due to excessive heat. The system will start after the system cools.	This message appears briefly when the navigation ECU temperature is too high, and then turn the ignition switch to LOCK (0) until the temperature cools down. The system turns back on when the audio-navigation unit cools down.
The display temperature is too high for protection. The display will shut down.	This message appears briefly when the display temperature is too high, and then the display turns off until the temperature cools down. The system turns back on when the display cools down.
The navigation system cannot access the memory module. Please turn the ignition off, then turn it back on. If the problem continues, visit your dealer when convenient.	This message appears when the system detects the SD module is not connected or there is an SD module connecting error. Check any official Honda service website for more service information about the navigation system.
The navigation system cannot access the memory module because it is not authorized to work with this system. Please insert the correct memory module or visit your dealer when convenient.	This message appears when the system detects a SD module that is not approved. Make sure the SD module is a genuine part. If the audio-navigation unit was replaced, make sure the SD module was transferred to the new unit. The SD module may be damaged or was not properly mated to the audio-navigation unit. Check any official Honda service website for more service information about the navigation system.
