Monitor Check: Display

This diagnosis does additional checks on the communication bus between the navigation ECU and the navigation display. In addition, this test checks the internal electronic functions.

• If Connection shows NG, replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION  ).
• Version represents the software version for the display.

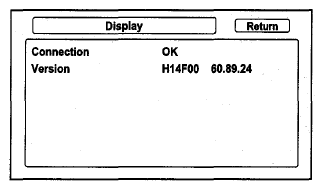

  Fig 1: Screen Display - Software Version

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
