Hard Key

This diagnosis tests the navigation hard buttons surrounding the navigation display, the HFL-voice control switch, and the audio remote switch.

• To complete the test, press each button, and move the joystic to each indicated position. As each function is tested, the corresponding button on the display should highlight.
• To exit, press and hold the ENTER.

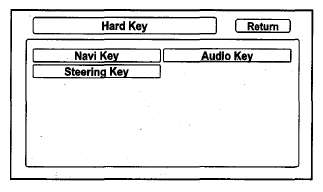

  Fig 1: Screen Display - Hard Key

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Select Navi Key

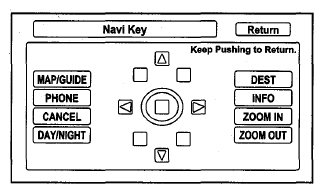

  Fig 2: Screen Display - Navi Key

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Select Steering Key

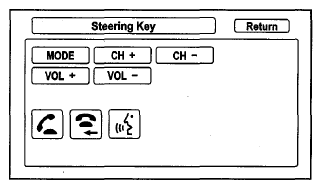

  Fig 3: Screen Display - Steering Key

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

  Select Audio Key

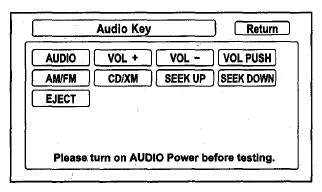

  Fig 4: Screen Display - Audio Key

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
