Voice Control Switch Replacement

SRS components are located in this area. Review the SRS component location COMPONENT LOCATION INDEX , and the precautions and procedures PRECAUTIONS AND PROCEDURES in the SRS section before doing repairs or service.

1. Remove the steering wheel STEERING WHEEL REMOVAL
2. Remove the audio remote switch AUDIO REMOTE SWITCH REPLACEMENTAUDIO REMOTE SWITCH TEST ).

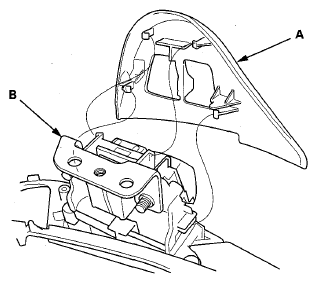

3. Remove the switch cover (A) from the HFL-navigation voice control switch (B).
   Fig 1: Identifying Switch Cover And HFL-Navigation Voice Control Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

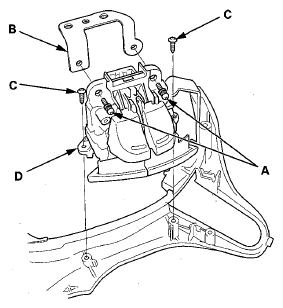

4. Remove the screws (A), and remove the set plate (B).
   Fig 2: Identifying Screws, Set Plate And HFL-Navigation Voice Control Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the screws (C), and remove the HFL-navigation voice control switch (D).
6. Install the voice control switch in the reverse order of removal.
