Front Subframe Torque

NOTE:
  • After loosening the subframe mounting bolts, be sure to replace them with new ones.
  • Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown in illustration.
  • Tighten the new front subframe mounting bolts in the numbered sequence shown in illustration.

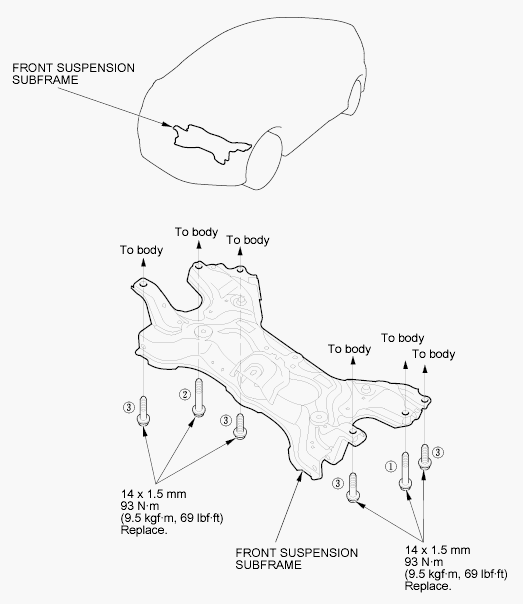

Fig 1: Front Subframe Replacement Components With Torque Specifications
G00491943Courtesy of AMERICAN HONDA MOTOR CO., INC.
