With navigation

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower glove box (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Remove the mounting bolts (A), and loosen the bolt (B).

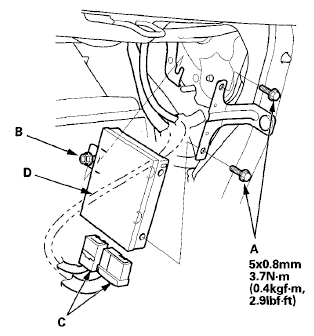

    Fig 1: Mounting Bolts With Torque Specifications
    G06768864Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (C) from the adapter unit (D).
  4. Remove the adapter unit from the bracket.
  5. Install the USB adapter unit in the reverse order of removal.
