Navigation Frequently Asks For Anti-Theft Code And/Or Needs GPS Initialization

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This is often caused by a loss of battery power, a low or poor battery condition, or a poor ground.
Make sure that the correct DVD color and version are installed.
Check any official Honda service website for more service information about the navigation system.

Turn the ignition switch to LOCK (0).
Disconnect audio-navigation unit connector A (24P), and check for loose terminals.
Are any of the terminals loose?

YES - Repair or replace the loose terminal(s).

NO - Go to step 3.
Turn the ignition switch to ON (II).
Measure the voltage between body ground and audio-navigation unit connector A (24P) terminals No. 14 and No. 24 individually.

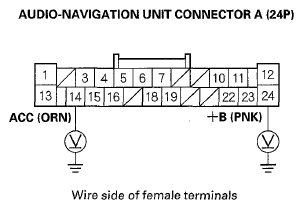

Fig 1: Measuring Voltage Between Body Ground & Audio-Navigation Unit Connector A (24P) Terminals No. 14 & No. 24
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES - Go to step 5.

NO - If the +B wire does not have voltage, repair open in the wire between the under-dash fuse/relay box and audio-navigation unit connector A (24P). If the ACC wire does not have voltage, repair open in the wire between the driver's under-dash fuse/relay box and audio-navigation unit connector A (24P).
Measure the voltage between audio-navigation unit connector C (8P) terminal No. 1 and body ground.
Is there battery voltage?

YES - Go to step 6.

NO - Repair open or high resistance in the wire between audio-navigation unit connector C (8P) and the under-dash fuse/relay box.

Fig 2: Measuring Voltage Between Audio-Navigation Unit Connector C (8P) Terminal No. 1 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Measure the voltage between audio-navigation unit connector A (24P) terminals No. 12 and body ground, between audio-navigation unit connector C (8P) terminal No. 4 and body ground, and between audio-navigation unit connector B (24P) terminal No. 17 and body ground.

Fig 3: Measuring Voltage Between Audio-Navigation Unit Connector A (24P) Terminals No. 12 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Measuring Voltage Between Audio-Navigation Unit Connector B (24P) Terminal No. 17 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Measuring Voltage Between Audio-Navigation Unit Connector C (8P) Terminal No. 4 & Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 0.1 V on all terminals?

YES - Replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).

NO - Repair open or high resistance in the wire between audio-navigation unit, connector A (24P) terminal No. 12 or audio-navigation unit connector B (24P) terminal No. 17 and body ground (G503 and G502), or audio-navigation connector C (8P) and body ground (G503).
