GPS Detail

By pressing and holding the MENU button for 2 seconds, a GPS Detail screen appears. This screen displays real time incoming satellite positional data when the vehicle is outside in the open. The information shown on this screen is for factory use.

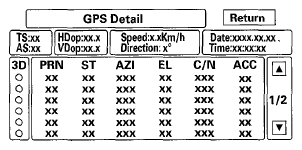

Fig 1: Identifying Screen Display - GPS Detail

Courtesy of AMERICAN HONDA MOTOR CO., INC.

• The box TS/AS and H Dop/V Dop is for factory use.
• The Speed and Direction information is updated in real time when driving.
• The Date/Time Information is the same as in Setup screen 2 Adjust Time Zone/Clock.
• If the 3D icon is shown above the yellow dots, this implies that at least four satellites are available for map positioning, and the GPS indicator on the map screen will be green. See GLOBAL POSITIONING SYSTEM  detailed explanation in the System Description.
• If the row of data in the table below begins with a yellow dot, the AZI and EL fields can be used to locate each satellite on the circular GPS diagram (see prior screen).

The table of values shown following define the terms at the top of the columns in the GPS Detail screen.
