Start-Up Procedure and Diagnostic Menu

WARNING: This page is about a different car, the 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Start the vehicle, and at the map screen use the navigation unit hard buttons as described:

NOTE: If the map screen does not show, refer to GPS initialization (see SERVICE PRECAUTIONS ).

Press and hold the MAP/GUIDE, MENU, and CANCEL buttons for about 3 seconds. The display screen goes directly to the Select Diagnosis Items menu shown below.

Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
Detail Information & Setting (allows you to manually diagnose the navigation system)

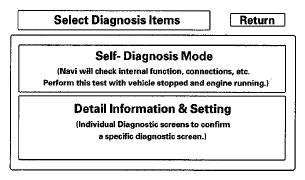

Fig 1: Identifying Screen Display - Self-Diagnosis Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.

From the Select Diagnosis Items menu, select the Self-Diagnosis Mode. The screen changes to the System Links screen, and automatically begins running the self diagnostic. See the System Links section for more information.

Fig 2: Identifying Screen Display - Select Diagnosis Items Menu

Courtesy of AMERICAN HONDA MOTOR CO., INC.
