Sound Proofing / Insulation: Service and Repair

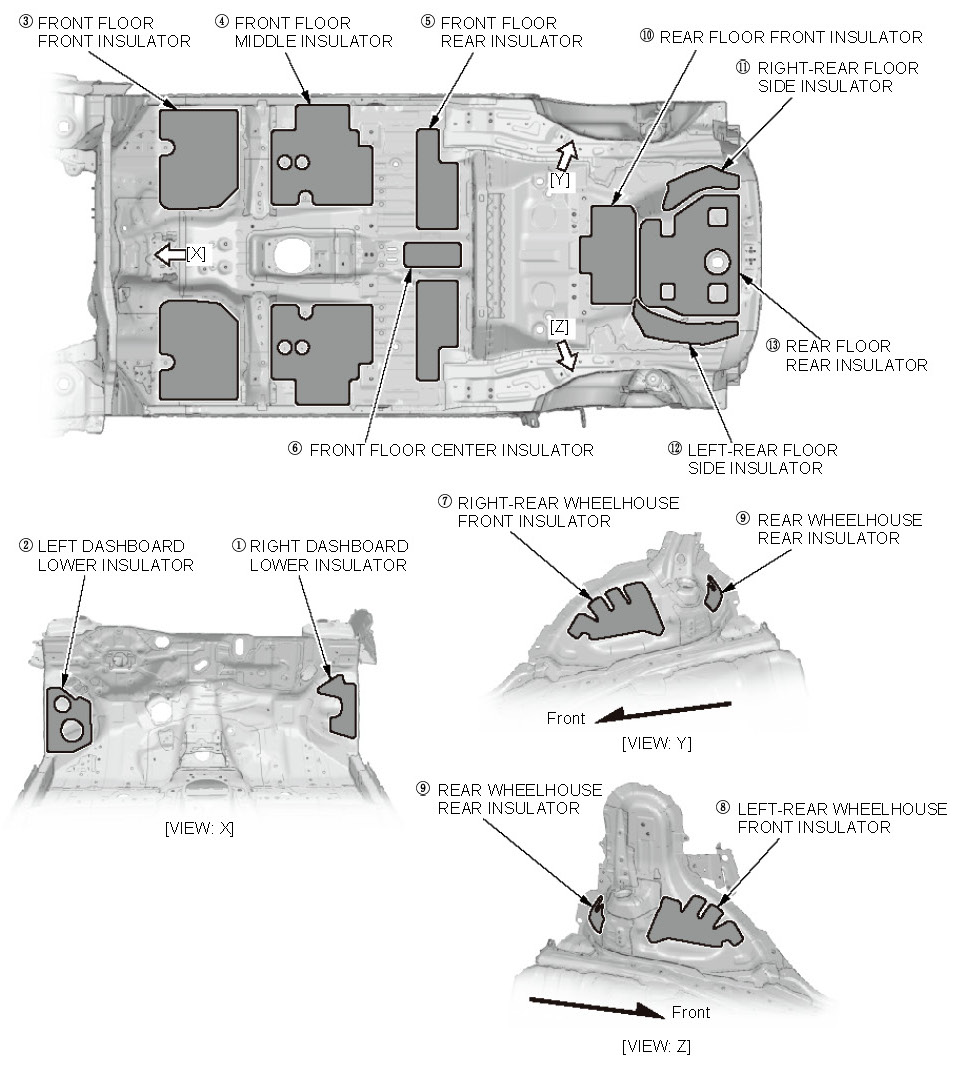

Floor Insulator Locations

Cut new insulators, and apply them in areas shown in this illustration.

NOTE: Before applying, clean and degrease the floor.

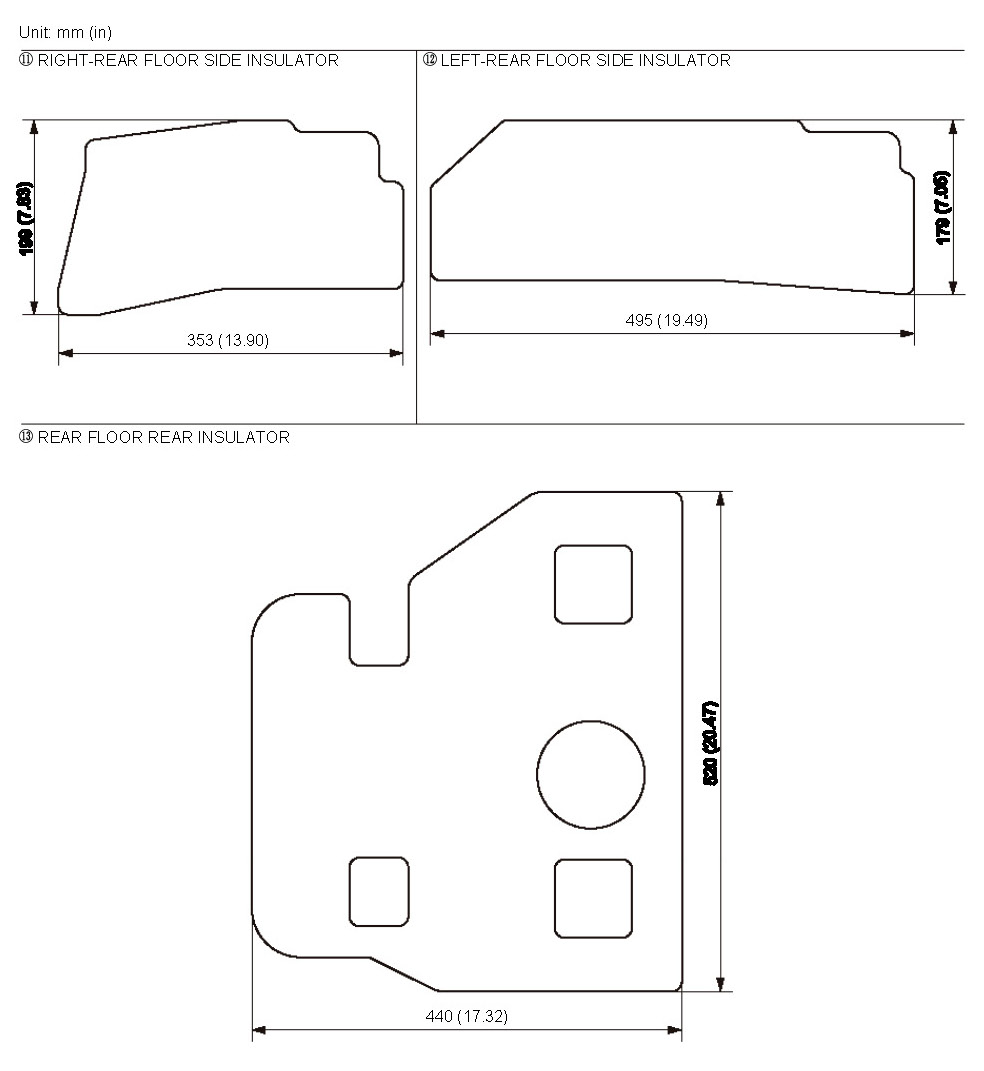

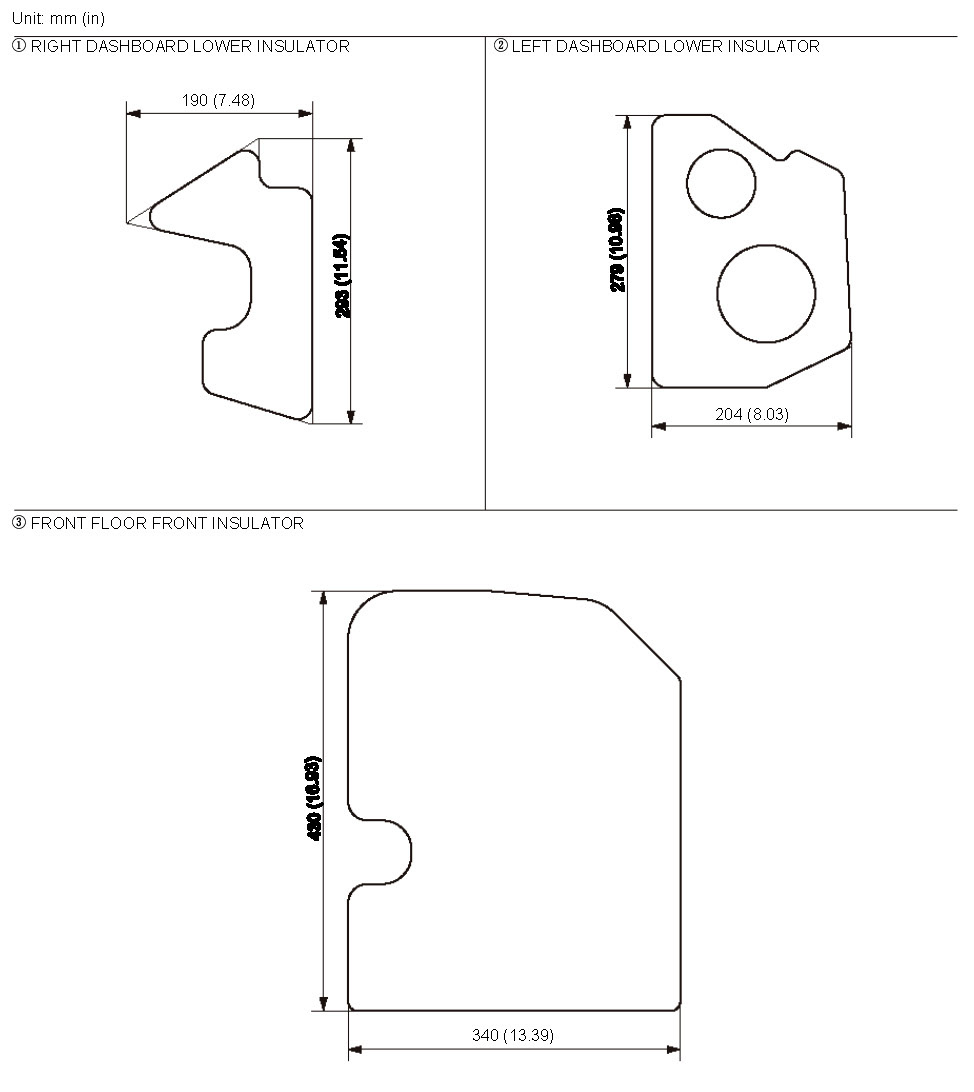

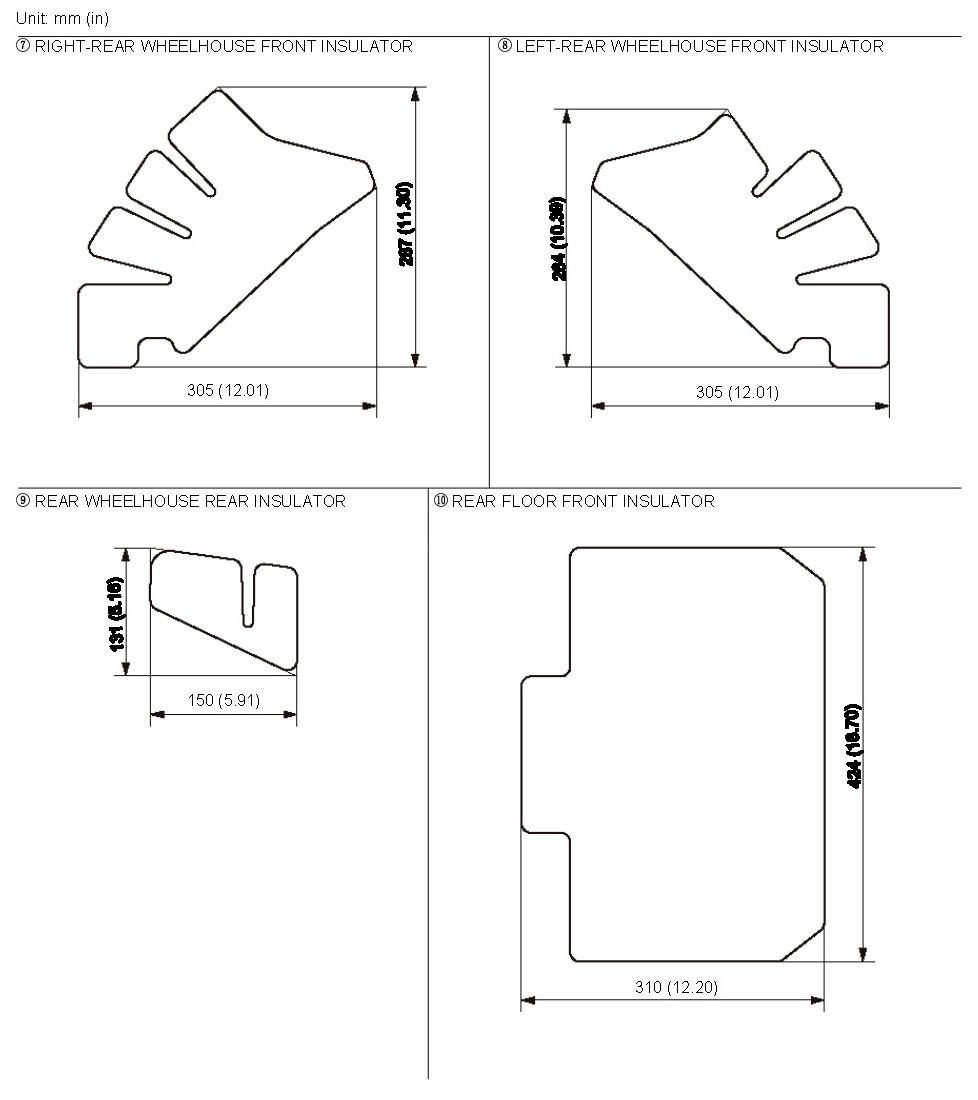

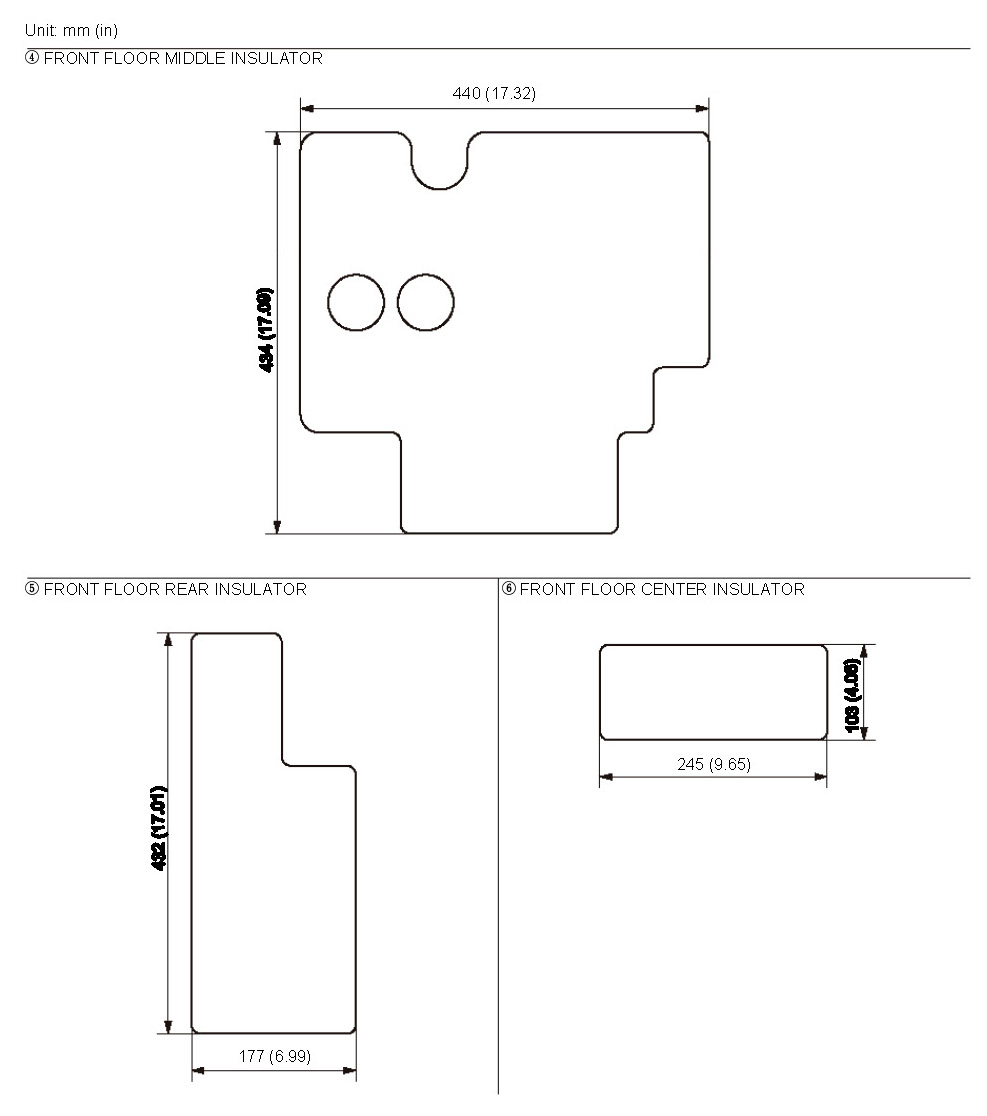

Floor Insulator Sizes
