Unit Check (Quick Check): Display

This diagnostic mode additional checks on the communication bus between the navigation CPU and the navigation display. In addition, this test checks the internal electronic functions.

• If the connection is NG, replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
• Version represents the software version for the display.

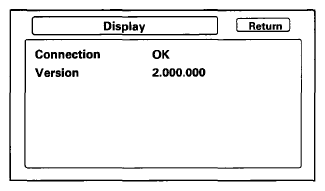

  Fig 1: Navigation Display - Display

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
