Voice Control Switch Replacement

SRS components are located in this area. Review the SRS component location (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) in the SRS article before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
2. Remove the audio remote switch (see AUDIO REMOTE SWITCH TEST ).
3. Remove the switch cover (A) from the HFL-navigation voice control switch (B).

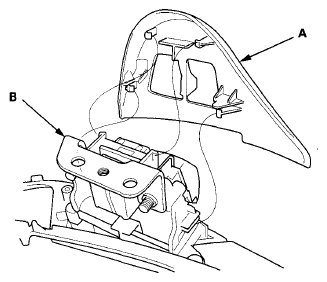

   Fig 1: Identifying Switch Cover And HFL-Navigation Voice Control Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the screws (A) and the set plate (B).

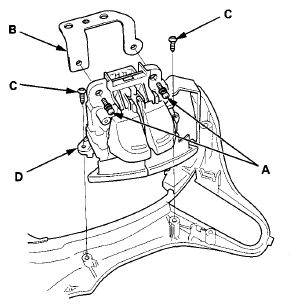

   Fig 2: Identifying Set Plate, Screws And HFL-Navigation Voice Control Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Remove the screws (C) and the HFL-navigation voice control switch (D).
6. Install the HFL-navigation voice control switch in the reverse order of removal.
