A/C Line Replacement

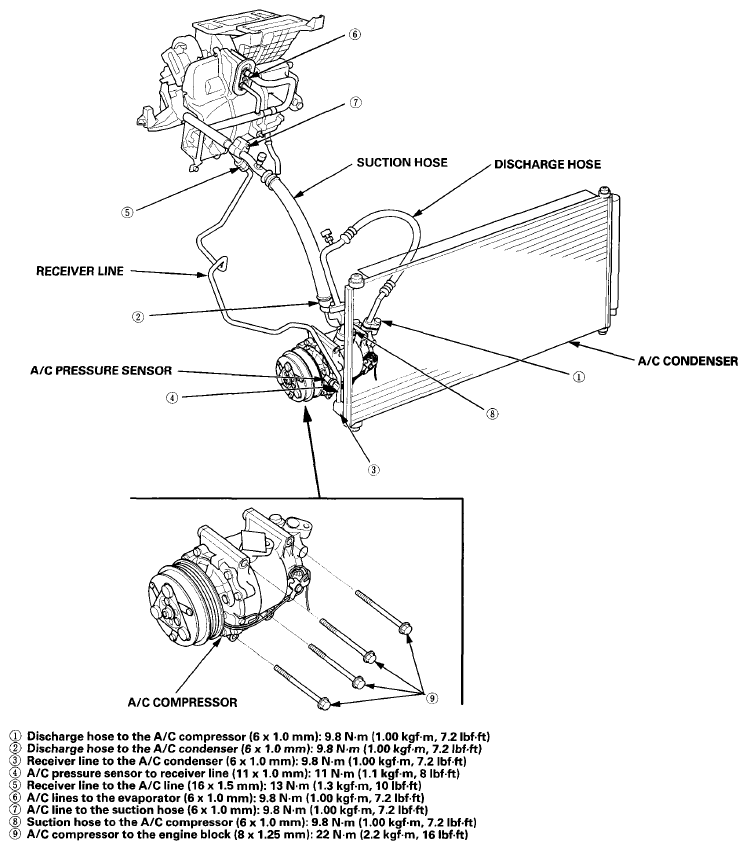

Fig 1: A/C Line Related Replacement Components With Torque Specifications
G08094411Courtesy of AMERICAN HONDA MOTOR CO., INC.
