LaneWatch Camera Removal/Installation

WARNING: This page is about a different car, the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, and 2014 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's power mirror actuator  .

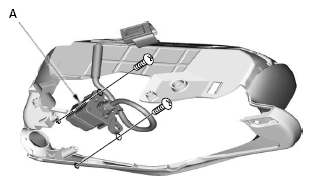

  2. Remove the LaneWatch camera (A).
    G12384903
  3. Install the LaneWatch camera in the reverse order of removal, and LaneWatch Camera Aiming .
