Cam Chain Inspection: Inspection

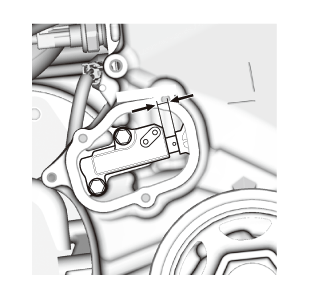

2. If the length is over the service limit, replace the cam chain

When replacing, check the teeth on the crankshaft sprocket, the VTC actuator, and the exhaust camshaft sprocket for wear and damage. If any of them are worn or damaged, replace if necessary.

3. Check the oil passage on the cam chain auto-tensioner for clogs. If the cam chain auto-tensioner is clogged, replace it.

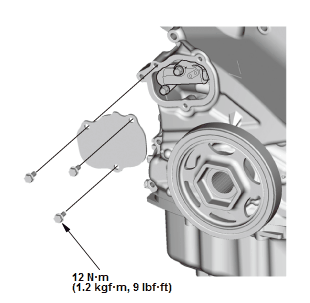

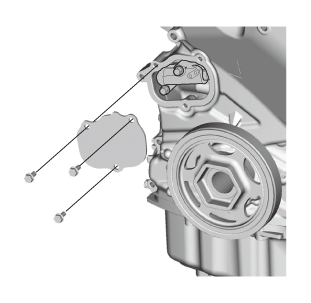

2. Clean and dry the chain case cover mating surfaces.

3. Apply liquid gasket (P/N 08717-0004, 08718-0003, or 08718-0009) to the chain case mating surface of the chain case cover and to the inside edge of the threaded bolt holes. Install the component within 5 minutes of applying the liquid gasket.

• Apply a 2.5 mm (0.098 in) diameter bead of liquid gasket along the broken line (A).
• If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.

• Wait at least 30 minutes before filling the engine with oil.
• Do not run the engine for at least 3 hours after installing the chain case cover.
