VTC Position Learn Procedure: Procedure

NOTE:

Clearing the DTCs with the HDS does not require you to do this procedure.
The PCM memorizes the learning status in its memory after passed an hour from turning the vehicle to the OFF (LOCK) mode. If you need to disconnect the 12 volt battery terminals before memorizing the learning status in the PCM, jump the SCS line with the HDS, and wait 60 seconds, then disconnect the 12 volt battery terminals.

HDS - Connect

Courtesy of HONDA, U.S.A., INC.

1. Turn the vehicle to the ON mode, but do not turn the vehicle to the READY TO DRIVE mode.

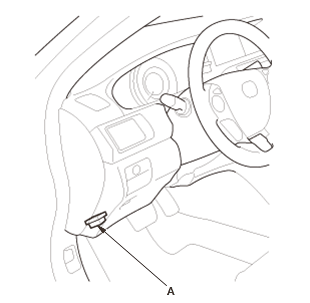

2. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

3. Make sure the HDS communicates with the PCM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting(PGM-FI System) (2014 2015), or DLC Circuit Troubleshooting(PGM-FI System) (2017)

VTC Position - Learn

1. Select E-VTC LEARNING in the ADJUSTMENT MENU with the HDS, and follow the screen prompts.

2. Turn the vehicle to the OFF (LOCK) mode.

3. Jump the SCS line with the HDS.

4. Wait 60 seconds, and exit the SCS mode with the HDS.
