EVAP Control System Component Location Index (L4)

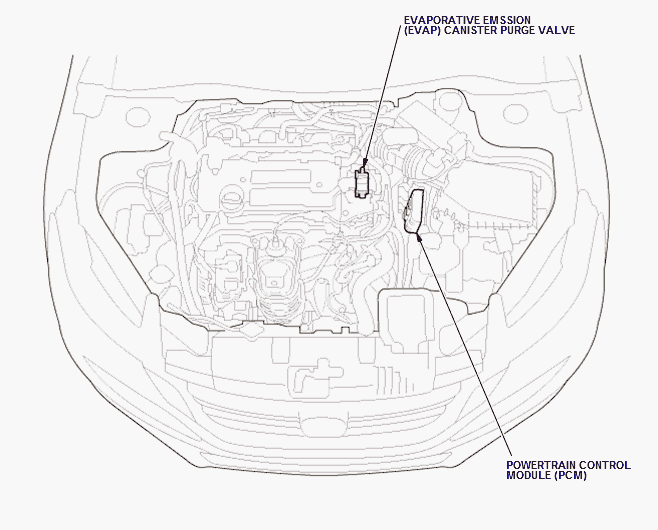

GHH60101Courtesy of HONDA, U.S.A., INC.

USA and Canada models

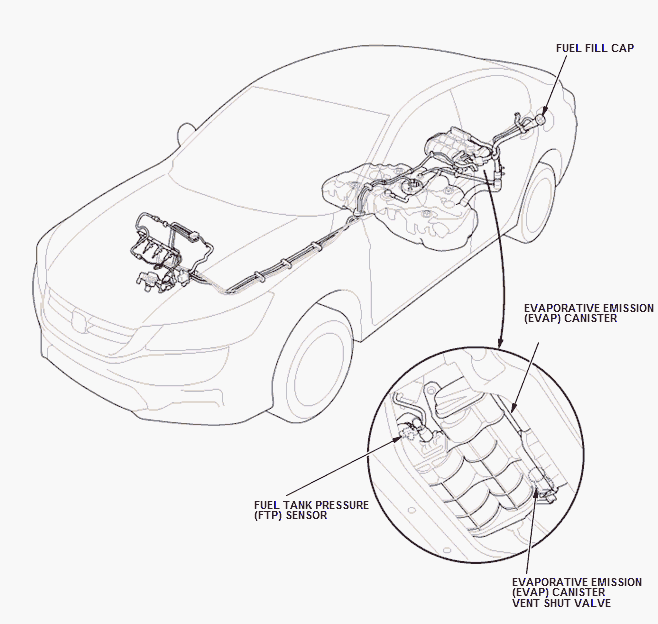

GHH60102Courtesy of HONDA, U.S.A., INC.

Mexico models

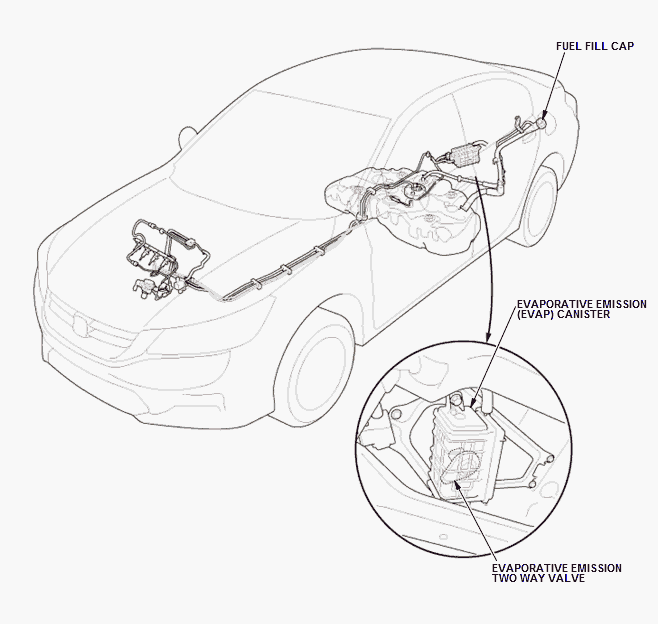

GHH60103Courtesy of HONDA, U.S.A., INC.
