Front Passenger's Power Window Switch Test: Removal

  1. Front Door Power Window Switch Panel - Passenger's Side
    1. Carefully pry out on the notch (A) in the power window switch panel (B) with the appropriate trim tool to detach the clips (C) and the hooks (D). Disconnect the connector (E), then remove the power window switch panel.

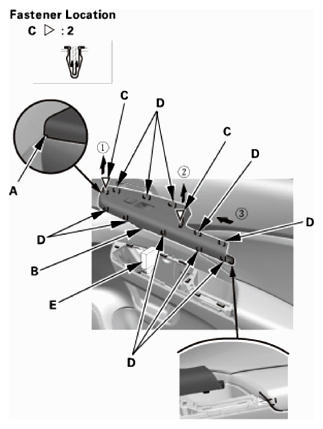

      Fig 1: Removing Power Window Switch Panel
      G08881537Courtesy of AMERICAN HONDA MOTOR CO., INC.
