Spark Plug Inspection: Installation

Spark Plug
1. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight, then tighten the plugs to the specified torque.
  Specified Torque:

  18 N.m (1.8 kgf.m, 13 lbf.ft)

  Fig 1: Spark Plug With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Ignition Coil
1. Install the ignition coils.

  Fig 2: Ignition Coil And Mounting Bolts With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Ignition Coil Cover
1. Install the ignition coil cover.

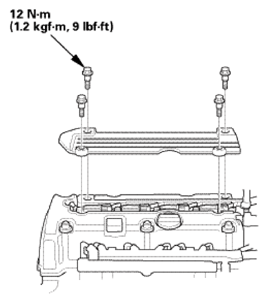

  Fig 3: Ignition Coil Cover And Mounting Bolts With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
