FTP Sensor Replacement

Remove the bolt (A), and disconnect the EVAP canister vent shut valve 2P connector (B), the FTP sensor 3P connector (C), and the hoses (D).

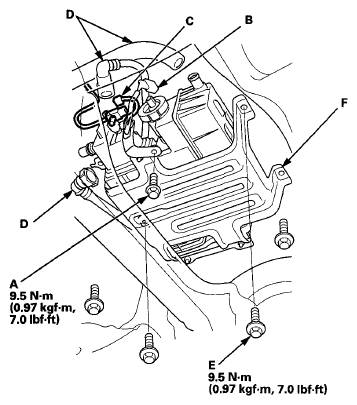

Fig 1: FTP Sensor Related Replacement Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (E), and move the EVAP canister assembly (F) to the rear.
Remove the FTP sensor (A).

Fig 2: Removing FTP Sensor Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with a new O-ring (B) and a new retainer (C).
