CMP Sensor A Replacement

Disconnect the CMP sensor A 3P connector (B).

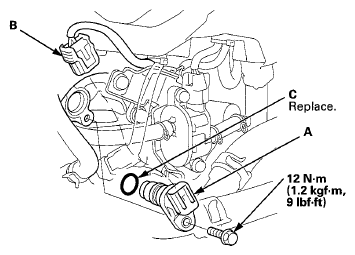

Fig 1: CMP Sensor A 3P Connector And O-Ring With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove CMP sensor A from the intake camshaft side of the cylinder head.
Install the parts in the reverse order of removal with a new O-ring (C).
