Steering Lock Replacement

WARNING: This page is about a different car, the 2013 Honda Fit, 2012 Honda Fit, 2011 Honda Fit, 2010 Honda Fit, and 2009 Honda Fit. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column (see STEERING COLUMN REMOVAL AND INSTALLATION ).

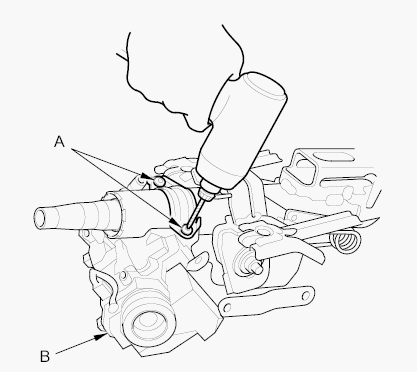

Center-punch both of the shear bolts (A), and drill their heads off with a 5.0 mm (0.197 in) drill bit. Be careful not to damage the steering lock (B) when removing the shear bolts.

Fig 1: Identifying Shear Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shear bolts from the steering lock, then remove the steering lock.
Remove the immobilizer-keyless control unit from the steering lock, then install it to the new steering lock (see IMMOBILIZER-KEYLESS CONTROL UNIT REPLACEMENT ).
Install the switch body without the key inserted.
Loosely tighten the new shear bolts.
Insert the ignition key, and check for proper operation of the steering wheel lock and that the ignition key turns freely.
Tighten the shear bolts (A) until the hex heads (B) twist off.

Fig 2: Identifying Shear Bolts & Hex Heads
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering column (see Steering Column Removal and Installation ).
Rewrite the new immobilizer-keyless control unit (see IMMOBILIZER KEY REGISTRATION ), and make sure the immobilizer system works properly.
