Infotainment
>>
Navigation System
>>
System Description
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

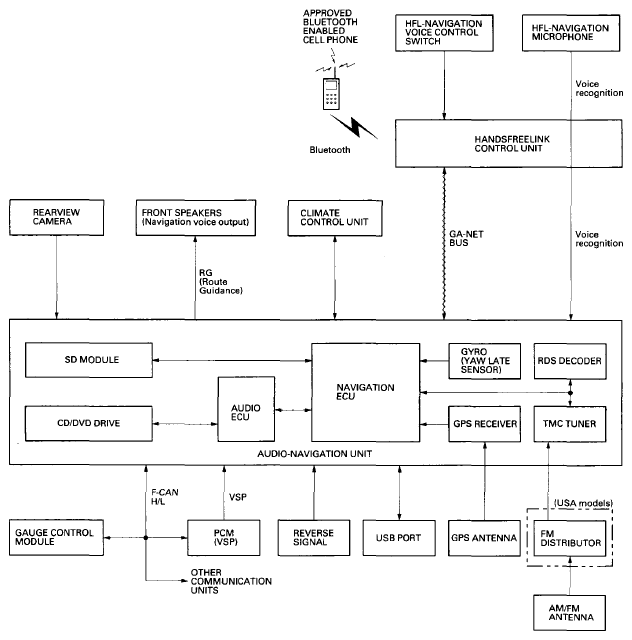

System Diagram
Fig 1: Navigation System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
