Interface Dial Removal/Installation

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the navigation switch panel and the center pocket (see NAVIGATION SWITCH PANEL REMOVAL/INSTALLATION ).
Remove the screws (A) and harness cover (B).

Fig 1: Identifying Screws And Harness Cover Of Navigation Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

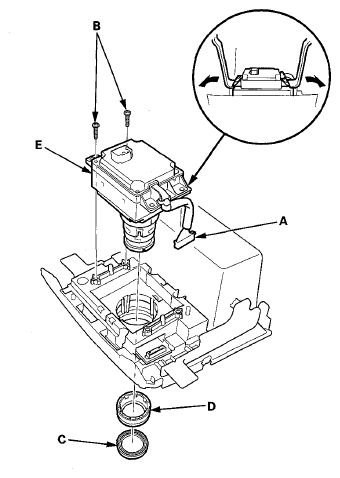

Disconnect the interface dial 13P connector (A).

Fig 2: Identifying Interface Dial 13P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (B), then remove the knob (C) and the dial (D) from the interface dial (E) with two KTC trim tools and applying even force as shown.
NOTE: Apply pressure slowly and steadily until the knob and dial pops off.
Install the interface dial in reverse order of removal.
NOTE: If the hard buttons do not work, but the jog dial does, recheck the interface dial connector connection.
