Power Mirror Switch Test/Replacement

Remove the power window master switch (see REAR POWER WINDOW SWITCH TEST/REPLACEMENT ).
Disconnect the 13P connector from the power mirror switch (A).

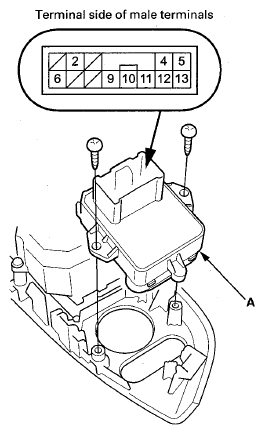

Fig 1: Identifying Power Mirror Switch And 13P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.
Power Mirror Switch

Fig 2: Checking Continuity Between Terminals In Switch Position According To Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, remove the screws and replace the power mirror switch.
