AC Inverter Unit Input Test/Replacement

Do the battery terminal disconnection procedure (see USING THE GR8 BATTERY DIAGNOSTIC STATION ).
Remove the passenger's side center console trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Disconnect the 14P connector (A) from the AC inverter unit (B).

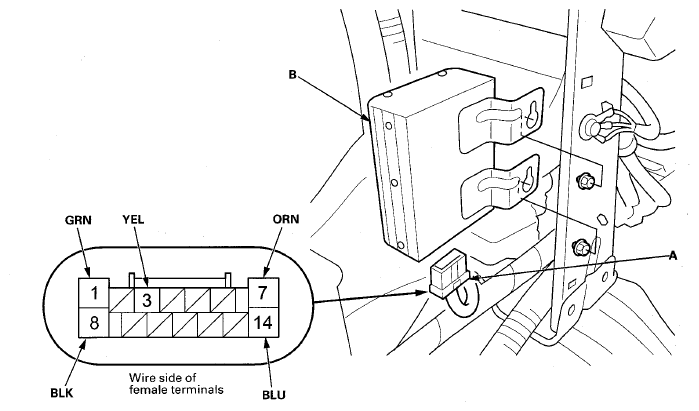

Fig 1: Identifying AC Inverter Unit And 14P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

With the connector still disconnected, do the following input tests:

If any test indicates a problem, find and correct the cause, then recheck the system.
If all the input tests prove OK, go to step 6.

Cavity	Wire	Test condition	Test: Desired result	Possible cause if desired result is not obtained
7	ORN	Under all conditions	Check for continuity between terminal No. 7 and power outlet 3P connector terminal No. 3: There should be continuity.	An open or high resistance in the wire
14	BLU	Under all conditions	Check for continuity between terminal No. 14 and power outlet 3P connector terminal No. 1: There should be continuity.	An open or high resistance in the wire

Reconnect the connector, turn the ignition switch to ON (II), and do the following input tests.

If any test indicates a problem, find and correct the cause, then recheck the system.
If all the input tests prove OK, replace the AC inverter unit, then go to step 7.

Cavity	Wire	Test condition	Test: Desired result	Possible cause if desired result is not obtained
8	BLK	In all ignition switch positions	Measure the voltage to ground: There should be less than 0.2 V.	Poor ground (G403) An open or high resistance in the ground wire
1	GRN	Under all conditions	Measure the voltage to ground: There should be battery voltage.	Blown No. 3 (30 A) fuse in the under-hood fuse/relay box An open or high resistance in the wire
3	YEL	Ignition switch ON (II)	Measure the voltage to ground: There should be battery voltage.	Blown No. 36(10 A) fuse in the under-dash fuse/relay box Faulty under-dash fuse/relay box Faulty IG2 cut relay An open or high resistance in the wire
