Engine Mechanical
>>
Mechanical
>>
Active Control Engine Mount System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

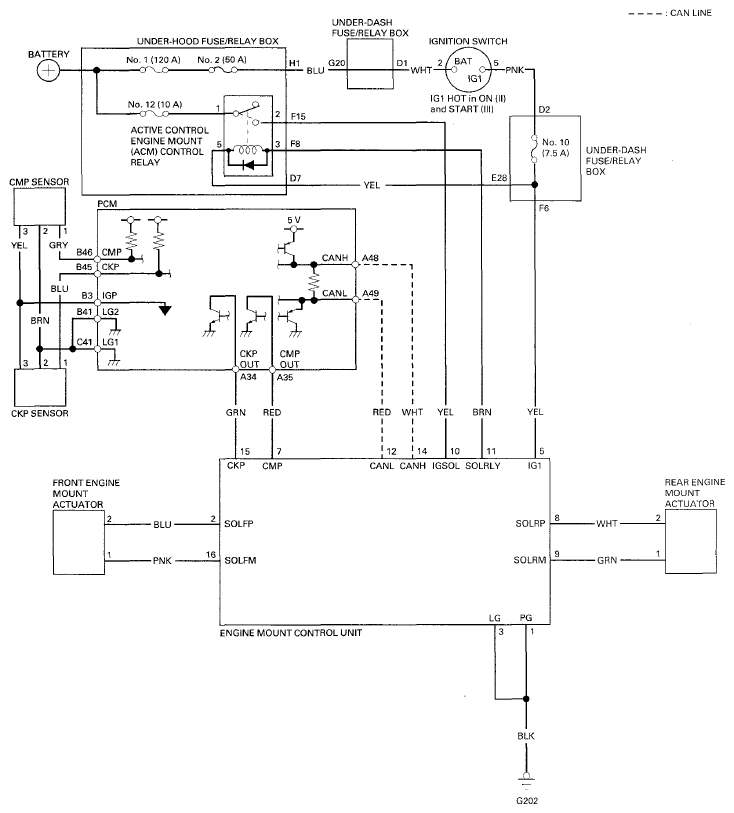

Fig 1: Front Engine Mount Actuator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
