Front Engine Mount Removal and Installation: Installation

Install the front engine mount (A) using new bolts (B).

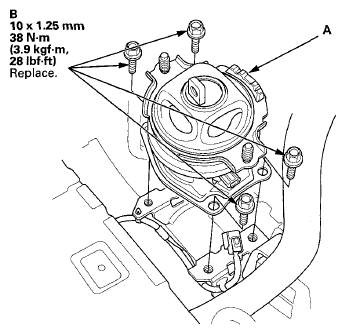

Fig 1: Front Engine Mount And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the jack and the wood block.
Install the new front engine mount mounting bolt (A), then install the front engine mount stop (B) using new nuts.

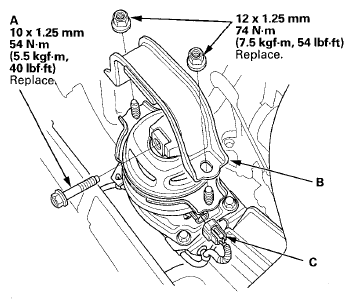

Fig 2: Front Engine Mount Mounting Bolt, Front Engine Mount Stop And Actuator Connector With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the front engine mount actuator connector (C).
Install the radiator (see RADIATOR AND FAN REPLACEMENT ).
