Ignition Key Switch Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), before doing repairs or servicing.

Remove the steering column upper and lower covers (see REMOVAL ).
Disconnect the 6P connector.

Fig 1: Identifying Ignition Key Switch 6P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

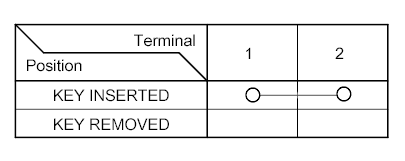

Fig 2: Checking For Continuity Between Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the steering lock (see STEERING LOCK REPLACEMENT ).
