Control Unit Input Test: MICU

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to LOCK (0), and remove the driver's dashboard lower cover (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Disconnect under-dash fuse/relay box connectors D, E, F, G and T.
    NOTE: All connector views are shown from wire side of female terminals.

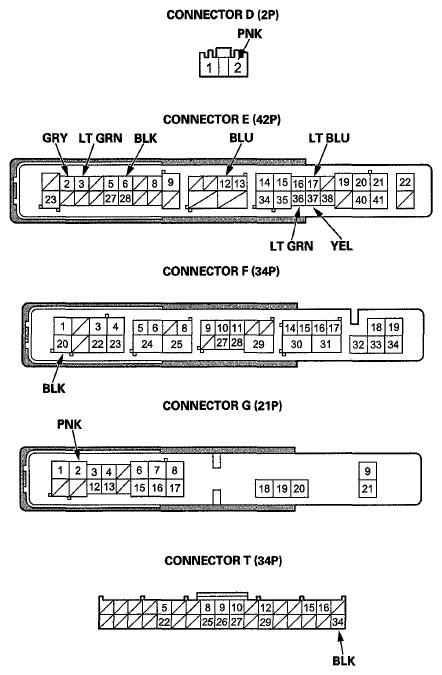

    Fig 1: Identifying Wire Side Of Female Terminals Connector Table
    G05966476Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step  4.
  4. Reconnect the connectors to the under-dash fuse/relay box, and do the following input tests at the following connectors
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step  5.
      WIRE CONDITION TABLE

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      E6 BLK In all ignition switch positions Measure the voltage to ground.
      There should be less than 0.2 V.
      • Poor ground (G401)
      • An open or high resistance in the wire
      F20 BLK In all ignition switch positions Measure the voltage to ground.
      There should be less than 0.2 V.
      • Poor ground (G501)
      • An open or high resistance in the wire
      T34 BLK In all ignition switch positions Measure the voltage to ground.
      There should be less than 0.2 V.
      • Poor ground (G401)
      • An open or high resistance in the wire
      D2 PNK Ignition switch ON (II) Measure the voltage to ground:
      There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • An open or high resistance in the wire
      G2 PNK Under all conditions Measure the voltage to ground:
      There should be battery voltage.
      • Blown No. 23 (10 A) fuse in the under-hood fuse/relay box
      • Faulty under-dash fuse/relay box
      • An open or high resistance in the wire
      E37 YEL Driver's door open Measure the voltage to ground.
      There should be less than 0.2 V.
      • Faulty driver's door switch
      • Faulty driver's door switch ground
      • An open or high resistance in the wire
      Driver's door closed Measure the voltage to ground:
      There should be more than 5 V.
      • Faulty driver's door switch
      • Faulty under-dash fuse/box
      • A short to ground in the wire
      E3 LT GRN Front passenger's door open Measure the voltage to ground:
      There should be less than 0.2V.
      • Faulty front passenger's door switch
      • Faulty front passenger's door switch ground
      • An open or high resistance in the wire
      Front passenger's door closed Measure the voltage to ground:
      There should be more than 5 V.
      • Faulty front passenger's door switch
      • Faulty under-dash fuse/relay box
      • A short to ground in the wire
      E17 LT BLU Left rear door open Measure the voltage to ground:
      There should be less than 2.0V.
      • Faulty left rear door switch
      • Faulty left rear door switch ground
      • An open or high in the wire
      Left rear door closed Measure the voltage to ground.
      There should be more than 5 V.
      • Faulty left rear door switch
      • Faulty under-dash relay box
      • A short to ground in the wire
      E2 GRY Right rear door open Measure the voltage to ground:
      There should be less than 0.2V.
      • Faulty right rear door switch
      • Faulty right rear door switch ground
      • An open in the wire
      Right rear door closed Measure the voltage to ground:
      There should be more than 5 V.
      • Faulty right rear door switch
      • Faulty under-dash
      • A short to ground in the wire
      E12 BLU Hatch glass open Measure the voltage to ground:
      There should be less than 0.2V.
      • Poor ground (G601)
      • Faulty hatch glass latch switch
      • An open or high resistance in the wire
      Hatch glass closed Measure the voltage to ground:
      There should be more than 5 V.
      • Faulty hatch glass latch switch
      • Faulty under-dash fuse/relay box
      • A short to ground in the wire
      E36(1) LT GRN Tailgate open Measure the voltage to ground:
      There should be less than 0.2 V.
      • Poor ground (G601) or an open in the ground wire
      • Faulty tailgate full latch switch
      • An open or high resistance in the wire
      Tailgate closed Measure the voltage to ground:
      There should be more than 5 V.
      • Faulty tailgate full latch switch
      • A short to ground in the wire
      (1) Without power tailgate
  5. Gauge Control Module

  6. Turn the ignition switch to LOCK (0).
  7. Remove the gauge control module (see GAUGE CONTROL MODULE REPLACEMENT ), and disconnect the 32P connector from it.
    Fig 2: Identifying Gauge Control Module 32P Connector Terminal
    G05966477Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.
    • If the terminals look OK, go to step  8.
  9. Reconnect the connector to the gauge control module, and do these input tests at the following connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step  9.
      WIRE CONDITION TABLE

      Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
      13 BLK In all ignitioin switch positions Measure the voltage to ground:
      There should be less than 0.2 V.
      • Poor ground (G401)
      • An open or high resistance in the wire
      16 WHT Under all conditions Measure the voltage to ground:
      There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • An open or high resistance in the wire
      32 YEL Ignition switch ON (II) Measure the voltage to ground:
      There should be battery voltage.
      • Faulty under-dash fuse/relay box
      • An open or high resistance in the wire
  10. Substitute a known-good gauge control module, and recheck the system.
