Navigation Display Unit Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard.
  1. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).
  2. Remove the center upper panel (see CENTER UPPER PANEL REMOVAL/INSTALLATION ).
  3. Remove the screws and bolts, then pull out the navigation display unit (A).

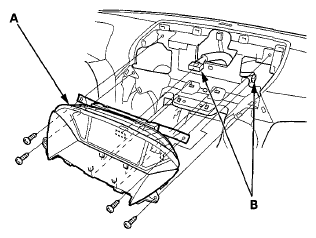

    Fig 1: Identifying Navigation Display Unit & Connectors With Screws & Bolts
    G05967205Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Disconnect the connectors (B), and remove the navigation display unit.
  5. Separate the navigation display unit (A) and the tray (B).

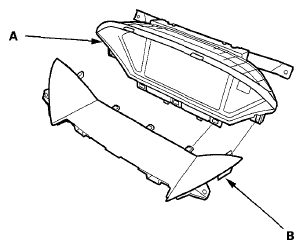

    Fig 2: Identifying Navigation Display Unit & Tray
    G05967206Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Install the unit in the reverse order of removal. Be careful not to drop the forward bolt behind the dashboard.
