Navigation Switch Panel Removal/Installation

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the navigation switch panel and the center pocket (A).
1. Remove the dashboard center panel, (see DASHBOARD CENTER PANEL REMOVAL/INSTALLATION )
2. Remove the screws, then pull out the navigation switch panel and the center pocket.
3. Disconnect the connectors and remove the navigation switch panel and the center Docket.

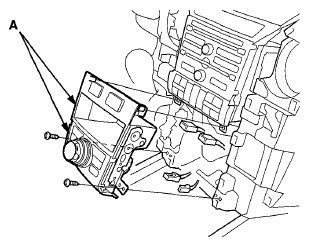

Fig 1: Identifying Center Pocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws and stays, then separate the navigation switch panel (A) and the center pocket (B).

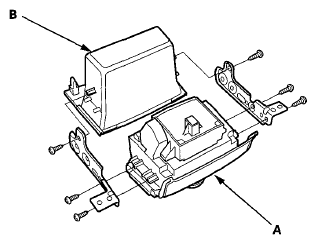

Fig 2: Identifying Navigation Switch Panel & Center Pocket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the navigation switch panel in the reverse order of removal.
