Unit Check (Quick Check): Display
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

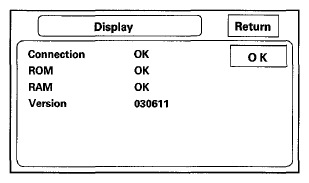

This diagnostic does additional checks on the communication bus between the control unit and the display. In addition, this test checks the internal electronic functions.
- When the connection is NG, first check for loose terminals at the navigation unit and the navigation display unit connections. Next check for an open or short in the communication line between the navigation unit and the navigation display unit. If the line has an open or short, replace the affected shielded harness.
- If the ROM or RAM is NG, replace the navigation display unit.
- The version represents the software version in the display.
