Unit Check (Quick Check): GPS
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

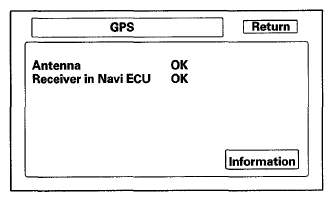

If GPS indicates NG (ANT), then check the entire GPS antenna wire from the navigation unit to the antenna. If the wire is crushed or damaged, try a known-good antenna. If the diagnostic then reads OK, replace the original GPS antenna. If the diagnostic still reads NG (ANT), replace the navigation unit. Select information to see the GPS satellite details.
Pressing the Information button displays more GPS signal detail.
