Hard Key
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

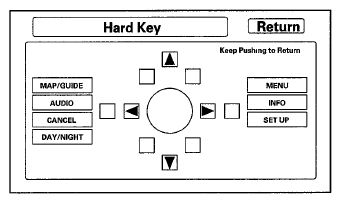

This diagnostic tests the interface dial and the buttons that surround it. For this model, the interface dial and buttons do not use the GA-Net bus for communications.
- To complete the test, touch each button on the vehicle's control panel, move, rotate, and press in the interface dial to each indicated position. As each function is tested, the corresponding button on the display should highlight. To exit, push in and hold the selector knob.
- To exit, push in and hold the selector knob.NOTE: You cannot use the on-screen return button to exit this function.
