Unit Check (Quick Check): Radio

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

If the NG is indicated, check for loose audio unit connector.

NOTE: If the XM link appears red, but the radio link appears green in the navigation system link, refer to SYMPTOM TROUBLESHOOTING INDEX .

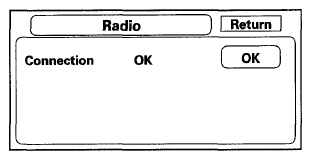

Fig 1: Identifying Screen Display - Radio

Courtesy of AMERICAN HONDA MOTOR CO., INC.
