Rear Camera

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

If the rearview camera is connected, it will appear as OK.
When the rearview camera is not connected, or there is a problem in the circuit, it will appear as NG.

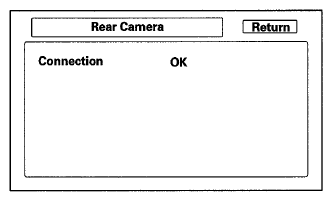

Fig 1: Identifying Screen Display - Rear Camera
Courtesy of AMERICAN HONDA MOTOR CO., INC.
