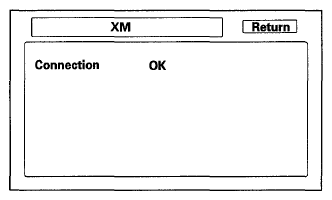

This checks the GA-NET Bus line to the XM receiver.
When the connection appears NG, check the connection open/short between the XM receiver and the navigation display unit.
