Yaw Sensor

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

This screen gives a quick test of the yaw sensor functionality based on the two voltages Sensor and Offset. For more information see the YAW RATE .

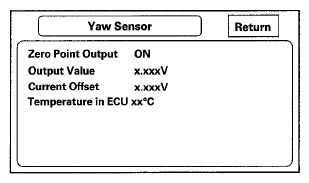

Fig 1: Identifying Screen Display - Yaw Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
