System Diagnostic Mode: Version

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

This screen displays the current version information for the navigation system software. In addition, this screen allows the loading of updated software if requested by the factory, or instructed by a Service Bulletin. Software may be loaded from a CD or a PC card.

Program Flash: Displays the version of the navi software in memory.
Program Disc: If displayed, this value represents the version of the navigation software on the navigation DVD.

NOTE: The last two letters of the Program Flash or DVD fields indicate which DVD is installed in the unit. The letters KA imply that a United States navigation DVD is installed. If the letters are KC, then a Canada navigation DVD is installed.

IPL, APL, DBOOT, and System uCom, are all for factory use.
Model: For this model, the field should begin with SZA.
Download: Do not touch, unless instructed by the factory or any other official Honda service information (like a service bulletin).
Downloading the software version off the disc may cause the navigation software to malfunction because there could be updates that were applied at the factory that are not contained on the navigation DVD.

Check any official Honda service website for more service information about navigation DVDs.

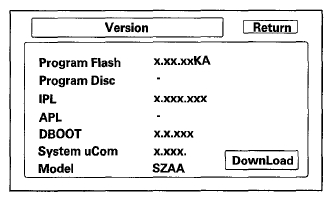

Fig 1: Identifying Screen Display - Version

Courtesy of AMERICAN HONDA MOTOR CO., INC.

There are two navigation DVDs produced for this model.

The white navigation DVD labeled United States is for the US market and contains maps for the contiguous 48 US states, and some southern portions of Canada. Customers wanting additional northern coverage in Canada, can purchase a Canada navigation DVD by contacting the navigation DVD fulfillment desk.
The gray navigation DVD labeled Canada, is for the Canada market, and contains maps for all of Canada, plus some of the northern US states. If customers with this navigation DVD require full US coverage (including states like Florida and Texas), they may purchase a United States navigation DVD by contacting the navigation DVD fulfillment desk.
