Voice Control Switch Test

WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering wheel
Remove the voice control switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).

Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table below.

Voice control switch

VOICE CONTROL SWITCH REFERENCE TABLE

Position	Resistance
No buttons pressed	About 10 kΩ
Talk button pressed	About 2.2 kΩ
Back button pressed	About 660 Ω

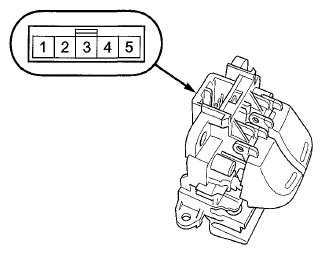

Fig 1: Identifying Terminals No. 2 & No. 4 Switch Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If the resistance is not as specified, replace the voice control switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
